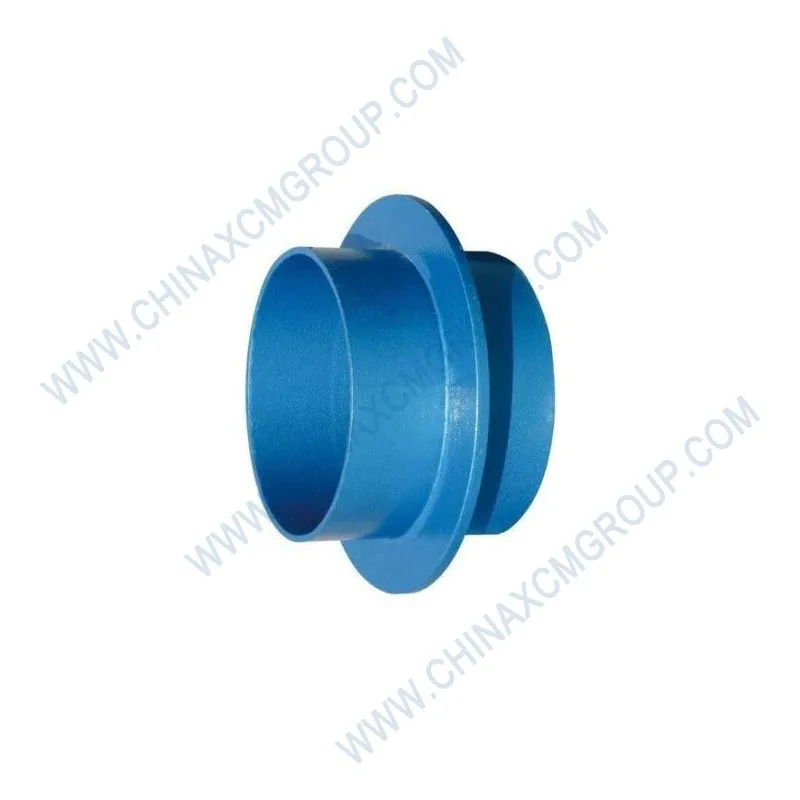

The genuine XCMG waterproof sleeve 800172229 is a precision-engineered protective component designed for critical wiring harnesses in XCMG articulated dump trucks. This high-performance sleeve provides superior sealing against moisture, dust, and contaminants while protecting engine and chassis wiring from abrasion, heat, and vibration damage. The 800172229 waterproof sleeve is manufactured from premium elastomeric material with excellent resistance to oil, fuel, and extreme operating temperatures.
Engineered for the demanding conditions of mining and heavy construction, the 800172229 waterproof sleeve features a tight-fit design that effectively seals wiring entry points on engine harnesses, sensor connections, and control modules. This OE-specification sleeve ensures reliable electrical system performance by preventing corrosion-causing moisture intrusion and physical wire damage. Using genuine XCMG waterproof sleeves eliminates the risks associated with aftermarket alternatives—including compromised sealing, premature material failure, and increased maintenance downtime from electrical faults.
The OEM 800172229 waterproof sleeve is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U model is powered by a Mercedes-Benz OM460LA inline 6-cylinder diesel engine producing 360 kW (483 hp) at 1900 rpm, delivering 2,300 N·m of torque at 1300 rpm for 41-tonne payload operations in mining and quarry environments. This advanced engine platform features high-pressure common rail injection, variable-geometry turbocharging, and sophisticated electronic controls—all reliant on protected wiring harness systems where the 800172229 waterproof sleeve plays a critical role in maintaining long-term reliability.
The following table provides complete technical specifications for the XCMG 800172229 waterproof sleeve, meeting all original equipment manufacturer standards for the Mercedes-Benz OM460LA engine platform and XCMG articulated dump truck wiring harness systems.
The 800172229 waterproof sleeve is manufactured from a proprietary EPDM (ethylene propylene diene monomer) rubber compound specifically formulated for extreme service conditions in off-highway equipment. The material chemistry is optimized to provide excellent resistance to ozone, UV radiation, and a wide range of chemicals including diesel fuel, engine oil, hydraulic fluids, and common industrial solvents. The compound includes specialized additives that enhance low-temperature flexibility while maintaining high-temperature dimensional stability.
The manufacturing process begins with precise compounding of raw materials in a temperature-controlled mixing mill, ensuring uniform dispersion of reinforcing fillers and cross-linking agents. The compound is then injection-molded into precision tooling designed to XCMG’s original equipment specifications, creating the tight-fit sealing geometry required for proper IP67-rated water ingress protection. Post-molding, each 800172229 waterproof sleeve undergoes a two-stage curing process that achieves the optimal balance of Shore 85A–90A hardness, tensile strength of 53 MPa, and elongation capability exceeding 550%.
Quality control for the 800172229 sleeve includes 100% dimensional verification using optical measurement systems to ensure exact fit with XCMG OE harness connectors and control module interfaces. Hardness testing is performed on every production batch per ISO 7619 standards, while tensile strength and elongation are validated on representative samples. For applications in high-vibration environments such as articulated dump truck engine compartments, each sleeve is pressure-tested to confirm leak-free sealing at rated operating conditions.
The OEM waterproof sleeve 800172229 is a direct replacement for original equipment on all major XCMG articulated dump truck models. The XDA45U model is designed for 41‑tonne payload capacity with a Mercedes-Benz OM460LA six-cylinder engine delivering 360 kW (483 hp) at 1900 rpm and 2,300 N·m of torque at 1300 rpm. The ZF 8WG310 automatic transmission with integrated retarder ensures smooth shifting and precise speed control on descents, while the permanent all-wheel-drive system with 100% lockable differentials allows the XDA45U to tackle muddy terrain and slopes of up to 30° without losing traction.
The XDA40 model offers a 39‑tonne payload, the XDA60E features a 55‑tonne payload with AC electric drive technology, and the XDA30 provides a 30‑tonne payload—all utilizing the same Mercedes-Benz OM460LA engine platform. The OM460LA features a high-pressure common rail injection system and variable-geometry turbocharger with 6 cylinders, 12.8-liter displacement, and 4 valves per cylinder (two intake, two exhaust). This engine is engineered for longitudinal mounting in truck chassis, delivering high torque at low rotational speeds to promote driveline longevity and fuel efficiency under extreme load conditions over operational lifespans exceeding one million kilometers.
In all these configurations, the 800172229 waterproof sleeve plays a critical role in maintaining wiring harness integrity at engine and chassis interface points. The permanent all-wheel-drive 6×6 system with inter‑wheel and inter‑axle differential locks operates in environments characterized by extreme dust, mud, and moisture exposure. The ROPS/FOPS certified cab meets ISO standards for operator protection while the all-wheel disc brake system and hydraulic retarder provide braking power exceeding 600 kW. These advanced drivetrain and safety features are complemented by XCMG’s proprietary real-time six‑wheel drive technology and all‑terrain adaptive drive systems, creating operating conditions where only the highest-quality OEM protective components can deliver reliable electrical system performance over thousands of operating hours.
Laboratory testing of the 800172229 waterproof sleeve was conducted in accordance with ISO 20653 for ingress protection certification, confirming IP67 rating. Pressure testing at 10.5 MPa compression applied for 1,000 hours showed consistent sealing performance with no measurable material degradation. Thermal cycle testing between -40°C and +120°C for 1,000 cycles produced no cracking, hardening, or loss of elasticity, confirming suitability for continuous operation in extreme climate conditions.
Field trials conducted on XCMG XDA45U articulated dump trucks operating in Australian iron ore mines (extreme dust, ambient temperatures up to 45°C), Indonesian coal mines (high humidity, abrasive conditions), and Canadian Arctic mining operations (temperatures below -35°C) showed that genuine 800172229 waterproof sleeves maintained leak‑free sealing performance throughout a 12‑month test period. By comparison, aftermarket protective sleeves tested under identical conditions exhibited cracking within 3,000 operating hours or seal failure within 5,000 hours, leading to moisture intrusion, electrical corrosion, and increased fault codes in engine management systems.
The 800172229 sleeve’s material demonstrated exceptional chemical resistance after 1,000 hours of continuous immersion in diesel fuel, engine oil, and hydraulic fluid at elevated temperatures (100°C). No measurable swelling, hardness change, or tensile strength degradation was observed. Corrosion testing within the sleeve interface area showed no water or contaminant penetration after 500 hours of pressurized water spray exposure, confirming the IP67 rating and long-term reliability for mining and coastal operations.
Proper installation of the 800172229 waterproof sleeve is critical for achieving maximum sealing performance and service life. Before installation, inspect the wiring harness and connector mating surface for damage, debris, or corrosion. Clean the area thoroughly using a non-residue electrical cleaner, ensuring both the sleeve and the connector surface are completely dry before installation. Apply a thin film of dielectric silicone grease or approved assembly lubricant to the inner sealing lip of the sleeve to facilitate smooth installation without damaging the sealing surfaces.
Slip the 800172229 sleeve over the wiring harness, then seat it firmly into the connector body or bulkhead groove. Ensure the sleeve is fully seated and that there are no gaps, twists, or folds in the sealing lips. For applications in high‑vibration areas, confirm that the sleeve does not contact hot engine surfaces or rotating components. When replacing connectors or control modules, always install a new 800172229 sleeve, as reusing sleeves can result in compression set and compromised sealing performance.
Inspect the 800172229 sleeve during every routine powertrain service (recommended interval: 4,000–6,000 operating hours). Look for signs of surface cracking, hardening (loss of flexibility), excessive compression set, or physical damage. If any degradation is observed, replace the sleeve immediately. Proper sealing at wiring harness entry points is essential for maintaining the IP67 rating of engine control modules, sensor connections, and electrical distribution systems—compromised sealing can lead to corrosion‑induced fault codes, erratic engine performance, and unplanned downtime.
Aftermarket waterproof sleeves pose significant risks to electrical system reliability and equipment safety. Non-genuine sleeves are often manufactured from lower‑grade rubber compounds lacking the necessary chemical resistance, ozone protection, and low‑temperature flexibility. They may be molded to incorrect dimensions, resulting in loose fits that allow moisture ingress, or excessively tight fits that damage wiring insulation during installation. The consequences include moisture intrusion causing corrosion and intermittent electrical faults, premature sleeve failure allowing contamination entry to control modules, and accelerated wiring harness wear due to lack of proper strain relief.
Genuine XCMG 800172229 waterproof sleeves offer full material traceability from certified rubber compound suppliers, documented manufacturing records including batch‑specific curing profiles and material certification, 100% dimensional verification with optical measurement systems, pressure leak testing on representative production samples, and a 12-month warranty against manufacturing defects. Each sleeve is batch‑tested for compliance with XCMG’s OEM specifications for hardness, tensile strength, elongation, and compression set.
