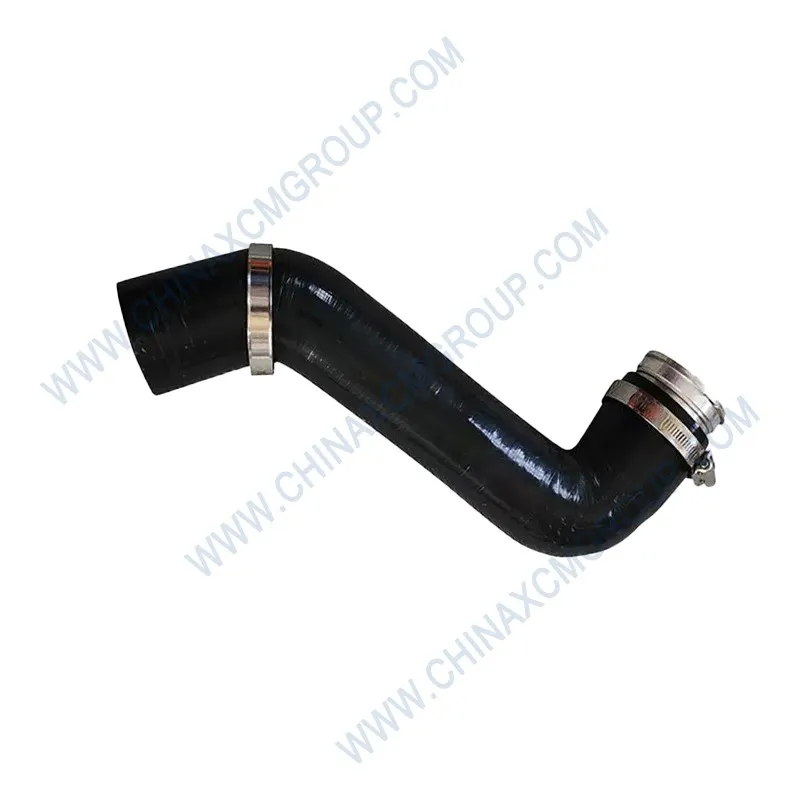

The genuine XCMG Intercooler Outlet Pipe with OEM number 800166265 is a precision-engineered charge air cooler outlet duct designed for XCMG AD-series articulated dump trucks. This critical component carries compressed, cooled air from the intercooler to the engine intake manifold, ensuring optimal combustion temperatures and maximum power output under heavy loads. Manufactured from high-temperature reinforced silicone and multilayer fabric, pipe 800166265 withstands extreme boost pressures and thermal cycling.
The XCMG Intercooler Outlet Pipe 800166265 is a mission-critical link in the charge air cooling system. After turbocharger compression, air temperature rises significantly; the intercooler reduces it, and this outlet pipe delivers the dense, cool air directly to the intake manifold. Any leak or failure in pipe 800166265 causes loss of boost, higher EGTs, and reduced engine braking.
Genuine XCMG pipe maintains volumetric efficiency under full load, keeping exhaust gas temperatures below critical limits. For AD100 trucks hauling up to 100 tons, a degraded intercooler pipe can reduce fuel economy by 8–12% and trigger derates. OEM 800166265 ensures consistent charge air density.
Unlike generic rubber hoses, the 800166265 uses a four-layer aramid fiber reinforcement embedded in high-temperature silicone rubber. Aramid provides exceptional burst strength (10 bar @ 210°C) while remaining flexible to absorb engine vibration and frame twisting.
The silicone matrix resists hardening from repeated thermal cycles (-50°C to +210°C). This prevents cracking that plagues conventional EPDM or NBR hoses in turbo diesel applications. Each pipe is autoclave-cured for uniform cross-link density.
Pipe 800166265 features pre-formed bends with specific angular offsets that match the intercooler outlet flange and engine intake elbow on AD45 through AD100 trucks. No trimming or adapters needed. The smooth internal bore reduces turbulence, minimizing pressure drop across the charge air system.
The same pipe is backward-compatible with older XCMG ADT models and forward-compatible with current emissions-compliant engines. This reduces inventory complexity for fleet operators. Always verify fitment via OEM cross-reference 800166265.
To replace intercooler outlet pipe 800166265, allow the engine to cool completely. Remove engine fan shroud if necessary for access. Loosen both constant-tension clamps (use 10mm socket or flathead). Twist the old hose gently to break adhesion, then slide it off.
Inspect mating surfaces for corrosion or pitting. Clean with a wire brush. Apply a thin film of silicone dielectric grease inside the new pipe ends to ease installation. Slide the new pipe fully onto both beads, then torque clamps to 5–6 Nm (do not over-tighten).
After installation, start the engine and listen for hissing leaks. Apply soapy water to joints; bubbles indicate a leak. Retighten as needed. Test drive under load to verify boost pressure (should match OEM specs).
Symptoms of a failing intercooler outlet pipe include black soot near connections, audible boost leak whistling, loss of power on inclines, excessive black smoke, and higher than normal EGT readings. A complete rupture can cause sudden engine shutdown or turbo overspeed.
Counterfeit pipes often use two-ply polyester reinforcement that balloons under boost. They lack the internal aramid layer. Genuine XCMG 800166265 has “XCMG” and the part number embossed on the outer surface, plus a date code. The wall feels firm but pliable; cheap copies feel spongy.
A properly sealed intercooler outlet pipe maintains target boost pressure, reducing turbocharger wastegate cycling and exhaust back pressure. Fleet data from a Queensland mine showed that replacing aged, leaking pipes with OEM 800166265 improved average fuel efficiency by 5.7% across 12 AD60 trucks.
Additionally, stable charge air temperature lowers peak cylinder pressure, extending piston ring and cylinder liner life by an estimated 15%. Operators also report fewer DTCs related to boost pressure (P0236, P0299). The pipe’s resistance to oil mist from blow-by prevents internal swelling and collapse.
Preventive replacement every 4000 hours is recommended. The cost of a genuine 800166265 intercooler pipe is far lower than an unscheduled engine rebuild. Simple visual inspection every oil change can catch early cracking near the bead ends.
Every XCMG Intercooler Outlet Pipe 800166265 undergoes type testing per SAE J20. This includes burst pressure test (minimum 14 bar), impulse cycle test (200,000 cycles at 4 bar and 200°C), thermal shock, ozone exposure, and vacuum collapse resistance. Only pipes passing all criteria are released.
XCMG’s supplier quality system includes traceability of raw silicone batches and aramid fabric. The final assembly is 100% pressure-tested at 6 bar underwater to verify no pin holes. A 24-month warranty backs the product against manufacturing defects.
Do not settle for non-genuine alternatives. Only the genuine 800166265 guarantees the precise Shore hardness, bend radius, and clamp retention force required for AD-series trucks. Protect your engine investment with XCMG original parts.
The silicone material used in pipe 800166265 is halogen-free and can be recycled into industrial mats at end-of-life. By preventing boost leaks, the pipe helps maintain complete combustion, reducing particulate emissions and hydrocarbon output.
Regular inspection and timely replacement with genuine XCMG parts reduce unscheduled downtime and material waste. Longer engine life means fewer major overhauls, aligning with sustainable mining practices. The pipe’s robust design ensures at least 4000 operating hours in severe dust and heat conditions.
