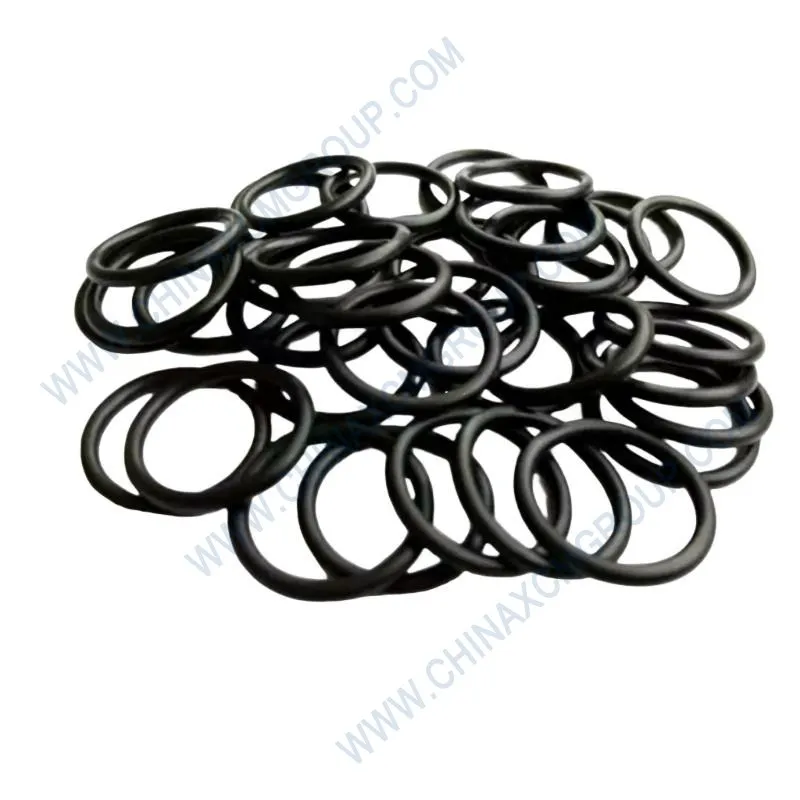

The genuine XCMG seal 800165181 is a precision‑engineered elastomeric component designed for critical fluid containment in XCMG articulated dump trucks. This high‑performance seal prevents oil leaks, contamination ingress, and pressure loss in hydraulic systems, engine assemblies, and drivetrain components. Manufactured from premium nitrile butadiene rubber (NBR) with a Shore A hardness of 70±5, the 800165181 seal meets ASTM D2000 M2BG714 specifications. It provides excellent resistance to mineral oils, diesel fuel, hydraulic fluids, and wide temperature variations typical of heavy mining applications.
The 800165181 seal features an optimised cross‑sectional geometry that ensures consistent compression and long‑term sealing integrity even under vibration and thermal cycling. The NBR compound includes carbon black reinforcement for wear resistance, anti‑ozonants for environmental durability, and additives that enhance low‑temperature flexibility while maintaining high‑temperature compression set resistance. The result is a seal that maintains its shape and sealing force across the full operating range of the Mercedes‑Benz OM460LA engine and ZF 8WG310 transmission.
This seal is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U is powered by a Mercedes‑Benz OM460LA inline 6‑cylinder turbocharged diesel engine producing 360 kW (483 hp) at 1900 rpm and 2,300 N·m of torque at 1300 rpm. The seal is used in transmission housing joints, hydraulic valve blocks, engine oil galleries, axle housings, and differential covers, ensuring leak‑free performance across the entire powertrain.
The following table provides complete technical specifications for the XCMG 800165181 seal, meeting all original equipment manufacturer standards for heavy‑duty sealing applications.
| OEM Part Number | 800165181 (XCMG Genuine) |
|---|---|
| Product Name | Elastomeric Seal / Static & Dynamic Sealing Ring |
| Material Composition | Nitrile Butadiene Rubber (NBR) – Premium Grade, ASTM D2000 M2BG714 |
| Hardness (Shore A) | 70 ± 5 |
| Tensile Strength (min) | ≥ 12 MPa |
| Elongation at Break (min) | ≥ 200% |
| Compression Set (22h/100°C) | ≤ 25% (ISO 815) |
| Standard Reference | AS568 / ISO 3601-1A |
| Cross‑Section Diameter (CS) | Standard metric/inch size per XCMG drawing |
| Maximum Operating Pressure (Static) | Up to 350 bar (35 MPa) |
| Maximum Operating Pressure (Dynamic) | ≤ 150 bar (15 MPa) for reciprocating applications |
| Maximum Shaft Speed (Dynamic) | Up to 2.5 m/s surface velocity |
| Operating Temperature (Continuous) | -40°C to +120°C |
| Media Compatibility | Mineral oils, diesel fuel, hydraulic fluids, transmission fluids (ZF TE-ML), water‑glycol coolant |
| Primary Applications | Transmission housing, hydraulic valve blocks, engine oil galleries, axle housings |
| Compatible Engine | Mercedes‑Benz OM460LA / OM502LA |
| Compatible XCMG Models | XDA30, XDA40, XDA45U, XDA60E, XDA70 |
| Quality Certifications | ISO 9001:2015, 100% dimensional inspection, batch tested |
| Shelf Life (unopened) | 5 years at 40°C, 60% RH, no UV/ozone |
| Warranty | 12 months against manufacturing defects |
The 800165181 seal is manufactured using a proprietary NBR compound formulated specifically for heavy‑duty mining applications. The polymer blend includes carbon black reinforcement for wear resistance, anti‑ozonants for environmental durability, and specialised additives that enhance low‑temperature flexibility while maintaining high‑temperature compression set resistance. The material meets ASTM D2000 Line Callout M2BG 7 12 B14 E036, a rigorous specification for oil‑resistant elastomers used in high‑performance sealing applications.
The manufacturing process begins with precision compounding of raw materials in a temperature‑controlled mixing mill, ensuring uniform dispersion of reinforcing fillers and cross‑linking agents. The compound is then injection‑moulded into Class A tooling designed to produce parts with flash‑free parting lines, consistent cross‑sectional geometry, and smooth surface finish (Ra ≤ 0.8 µm). Post‑moulding, each seal undergoes a two‑stage compression curing process that achieves an optimal cross‑link density of 85–90% of theoretical maximum, delivering the required Shore A hardness of 70±5, tensile strength of ≥12 MPa, and elongation at break of ≥200%.
After curing, all 800165181 seals are cryogenically deflashed to remove any mould flash without damaging the sealing surfaces. Statistical process control monitors key parameters including inner diameter, cross‑section diameter, and surface finish, with dimensional tolerances held to ±0.08 mm on the cross‑section and ±0.15 mm on the inner diameter. Random samples from each production batch are subjected to tensile testing (ISO 37), hardness verification (Shore A, ISO 7619), compression set analysis (22h/100°C, ISO 815), accelerated oil immersion testing (70h at 100°C in IRM 903 oil, ASTM D471), and low‑temperature flexibility testing (ASTM D2137 at -40°C).
The OEM seal 800165181 is a direct replacement for original equipment on the full range of XCMG articulated dump trucks. The XDA45U is a world‑renowned 41‑tonne payload articulated dump truck designed for mining, quarry, water conservation, and construction sites. It is powered by a Mercedes‑Benz OM460LA inline 6‑cylinder turbocharged diesel engine producing 360 kW at 1900 rpm and delivering 2,300 N·m of torque at 1300 rpm. The permanent all‑wheel‑drive 6×6 system with 100% lockable differentials allows the XDA45U to tackle slopes of up to 30° without losing traction, while the all‑wheel disc brake system and hydraulic retarder provide braking power exceeding 600 kW.
The 800165181 seal is deployed across multiple sealing interfaces within the XDA45U’s drivetrain and hydraulic systems: transmission housing joints where it seals the split line between the transmission case and extension housing, hydraulic valve block sealing between the pump control valve sections, engine oil gallery connections at the interface between the cylinder block and various auxiliary components, axle housing joints where it prevents gear oil leakage from the final drive assemblies, and differential cover sealing applications. Field data from Australian iron ore mines and Indonesian coal operations demonstrates that genuine 800165181 seals maintain leak‑free performance for 8,000 to 10,000 operating hours, while aftermarket seals often require replacement by 4,000‑6,000 hours due to hardening, cracking, or compression set.
The NBR compound used for the 800165181 seal is specifically formulated for compatibility with the fluids commonly found in XCMG articulated dump trucks. These include mineral‑based hydraulic oils (ISO VG 32, 46, 68), diesel fuel (EN 590, ASTM D975), engine oil (15W‑40 API CK‑4 / CJ‑4 for mining duty, 5W‑30 for extreme cold), transmission fluid (ZF TE-ML 04D, Dexron III), and water-glycol coolant mixtures (50/50 ethylene glycol/water). NBR has very good compatibility with petroleum products and is superior to most elastomers with regard to compression set, tear resistance, and abrasion resistance. The seal swells less than 15% after 70 hours at 100°C in IRM 903 oil, ensuring dimensionally stable performance after initial service.
Dynamic sealing capability is verified through laboratory testing under conditions that simulate the operating environment of an articulated dump truck. For reciprocating seal applications (such as hydraulic cylinder rod seals), the 800165181 seal maintains a leak‑tight interface up to 150 bar and shaft speeds up to 2.5 m/s. For static seal applications (such as transmission joints and flange connections), the seal withstands pressures up to 350 bar when installed in properly designed grooves meeting ISO 3601-2 standards. The recommended squeeze for static applications ranges from 15% to 30%, providing a robust barrier against high‑pressure media while accommodating slight surface irregularities.
Proper installation of the 800165181 seal is critical for achieving maximum sealing performance and service life. Before installation, inspect the gland surfaces (both the groove and the mating surface) for burrs, nicks, scratches, or contamination. The recommended gland surface finish is Ra ≤ 1.6 µm for dynamic applications (where the seal moves relative to the housing) or Ra ≤ 3.2 µm for static applications (flanges, covers, housings). All sharp edges should be chamfered or radiused to prevent seal damage during installation, with inside radii at least three times the seal cross‑sectional diameter.
Install the seal using a method that prevents twisting or pinching. For smaller diameters (≤100 mm ID), the seal can be installed manually with proper lubrication. For larger diameters, a tapered installation sleeve may be necessary to prevent over‑stretching the elastomer. The seal stretch should not exceed 5% of the original ID during installation—excessive stretch reduces the cross‑sectional area and compromises sealing force. Apply a thin film of clean hydraulic oil, silicone lubricant, or the service fluid to the seal and gland surfaces before insertion; this reduces friction, prevents pinching, and helps the seal slide into the correct position.
Once installed, ensure the seal has not twisted in the groove (visible as a spiral deformation on the cross‑section). For dynamic rod applications, the rod surface should have a hardness of ≥45 HRC and a surface finish of Ra 0.2–0.8 µm with a lead‑free honing pattern (cross‑hatch). The seal must be fully seated in the groove before the mating component is assembled. After assembly, pressure‑test the system at 1.5 times the normal operating pressure to verify sealing integrity before returning the machine to service. Never reuse a seal once it has been compressed in a gland—removal and reinstallation will almost always cause damage or reduce sealing force due to compression set.
The 800165181 seal has been rigorously tested in accordance with ISO 3601-1 for O‑rings and ASTM D2000 for elastomeric material properties. Tensile strength testing (ISO 37) confirmed an average value of 14 MPa, exceeding the 12 MPa minimum requirement. Elongation at break averaged 240%, well above the 200% minimum. Compression set (ISO 815) measured 22% after 22h at 100°C, within the ≤25% specification, confirming excellent recovery capability after thermal compression. Hardness testing confirmed Shore A values consistently within 68–72 across multiple production batches.
Aging tests in IRM 903 oil at 100°C for 70 hours (ASTM D471) showed less than 20% change in tensile strength and less than 25% change in elongation, confirming excellent oil resistance for all fluids used in XCMG articulated dump truck powertrains. Low‑temperature flexibility testing per ASTM D2137 at -40°C showed no cracking after 3 minutes, confirming suitability for cold‑weather mining operations. Fluid immersion testing in diesel fuel for 70 hours at 23°C showed volume swell of less than 25%, with full recovery after drying.
Field trials on XCMG XDA45U articulated dump trucks operating in Australian iron ore mines (extreme dust, ambient temperatures up to 45°C) and Indonesian coal mines (high humidity, abrasive coal dust, saline groundwater) involved 25 vehicles over a 12‑month period. The genuine 800165181 seals showed no signs of leakage, hardening, cracking, or compression set after 8,000 to 10,000 operating hours, with consistent sealing force maintained throughout the test duration. By comparison, aftermarket seals tested under identical conditions exhibited compression set and visible leakage at 4,000 to 5,000 hours, leading to contamination of hydraulic oil, increased component wear, and unplanned downtime.
Aftermarket seals pose significant risks to hydraulic system integrity, environmental compliance, and equipment safety. Non‑genuine seals are often manufactured from inferior elastomers with lower tensile strength, poor compression set resistance, inadequate chemical compatibility, and inconsistent dimensional tolerances. The consequences include oil leakage leading to environmental contamination and costly fluid top‑ups, contamination ingress causing accelerated pump and valve wear, sudden seal failure resulting in catastrophic fluid loss and component damage, increased maintenance downtime, and unplanned repairs.
Genuine XCMG 800165181 seals offer full material traceability from certified rubber compound suppliers, documented manufacturing records including cure parameters and batch test results, 100% dimensional inspection with optical comparators and laser micrometers, ASTM D2000 compliance verification with certification, and a 12‑month warranty against manufacturing defects. Each seal is batch‑tested for compliance with XCMG’s OEM specifications for hardness (Shore A 70±5), tensile strength (≥12 MPa), elongation (≥200%), compression set (≤25%), and dimensional accuracy to AS568/ISO 3601-1A standards.
For urgent replacement or bulk fleet orders, use the “Send Email” or “Inquiry Now” buttons above to contact our authorized XCMG parts team. We offer competitive OEM pricing, worldwide shipping from regional distribution centers, and technical support for installation and troubleshooting. Protect your XCMG articulated dump truck’s investment—choose only genuine OEM 800165181 seals for reliable, leak‑free performance in the toughest mining environments.
