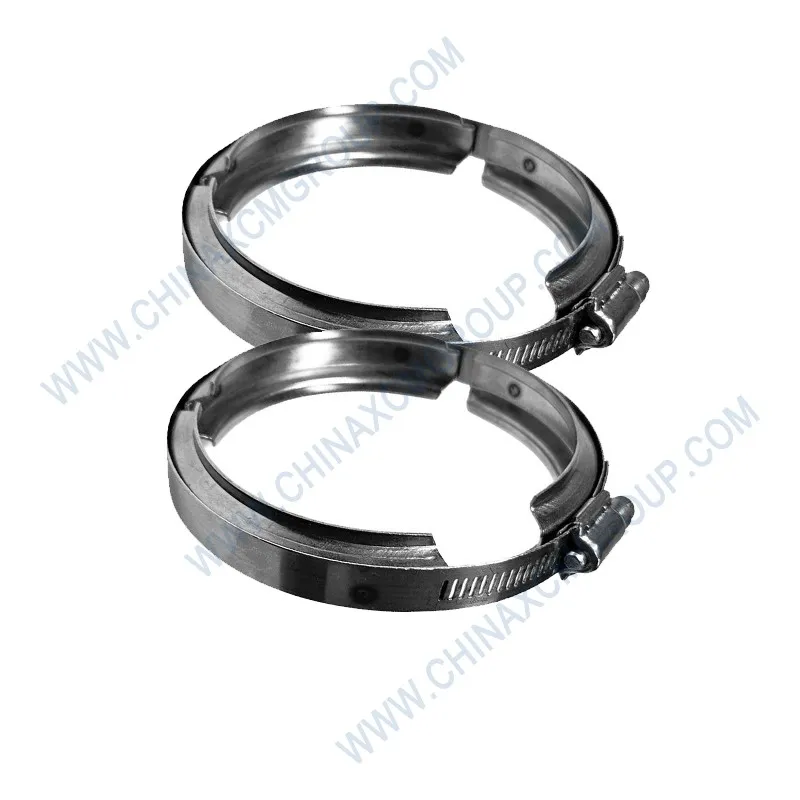

The genuine XCMG V-Shaped Clamp with OEM number 800161555 is a heavy-duty V-band coupling designed for exhaust system connections on XCMG articulated dump trucks. This clamp secures the turbocharger outlet to the downpipe and connects DPF/SCR modules. Manufactured from heat-resistant stainless steel (AISI 304/409) with a robust latch mechanism, the OEM 800161555 V-shaped clamp maintains leak-tight sealing under extreme thermal cycling, vibration, and high exhaust backpressure up to 3.5 bar.
The XCMG V-Shaped Clamp 800161555 is a critical component for maintaining exhaust gas integrity in modern AD-series articulated dump trucks. The clamp’s V-groove engages with matching V-flanges on the turbocharger outlet and DPF inlet, creating a metal-to-metal seal that withstands exhaust temperatures up to 850°C. Unlike flat flanges with gaskets that burn out, this design never requires gasket replacement. The clamp applies radial compression uniformly around the circumference, eliminating hot spots and blow-by.
Used extensively on Cummins QSM11 and Mercedes OM460 engines, the 800161555 clamp prevents soot leakage, false backpressure readings, and under-hood fire hazards. A failing clamp typically emits a loud exhaust hiss or produces black soot deposits around the joint. Genuine XCMG clamps are cold-formed from 304 stainless and heat-stabilized to prevent stress relaxation at elevated temperatures.
The band of the 800161555 V-clamp is laser-cut from AISI 304 stainless steel sheet, then roll-formed into a V-profile with an accuracy of ±0.2 mm. The retainer housings and latch plates are investment-cast from CF8M (316 stainless with molybdenum), providing excellent creep resistance. The bolt is a class 10.9 steel with zinc flake coating, which prevents galling at high temperatures. The entire assembly is passivated in a citric acid bath to remove free iron and maximize corrosion resistance.
XCMG performs 100% dye penetrant inspection on each investment-cast retainer to detect cracks. The clamp is then proof-loaded to 1.5× nominal torque to verify structural integrity. Counterfeit clamps often use 201 stainless (which loses strength above 400°C) or cast iron retainers that crack during thermal cycling.
On AD45 and AD60 trucks, the 800161555 clamp is used at the turbo-to-DPF connection (5‑inch diameter). On AD80/AD100, the same clamp secures the DPF to SCR module. The clamp’s size range (102–127 mm) accommodates the standard 5‑inch exhaust tubing used on most Tier 4 Final installations. The V‑band profile matches XCMG’s cast flanges exactly. Replacement is straightforward: loosen the bolt, remove the old clamp, clean the flanges, position the new clamp, and torque to 28 Nm.
For trucks with the Mercedes OM460 engine, an additional clamp of the same part number is used on the EGR cooler outlet. Always replace the clamp whenever the exhaust system is disassembled. Reusing a V‑band clamp can lead to insufficient sealing because the band may have taken a permanent set.
To install the V-Shaped Clamp 800161555, first ensure the exhaust system is cool (<50°C). Clean the V‑groove flanges with a wire brush and brake cleaner. Open the clamp by turning the bolt counterclockwise. Fit the clamp around both flanges, aligning the V‑groove with the flange rings. Engage the latch and start the nut by hand. Using a torque wrench, tighten the bolt to 28 Nm. Do not use anti-seize on the bolt threads; a dry torque specification is required.
After the first heat cycle (engine run to 80°C, then cooled), re-torque to 28 Nm. The initial heating may cause slight settling. A properly installed clamp will have a gap of 1–3 mm between the hinge ears, and the bolt will not be bottomed out. Use a soapy water spray to check for leaks at idle and at high RPM. If leakage persists, the flanges may be warped or the clamp may be incorrectly sized.
Common failure signs of a V‑band clamp include: visible black soot trails around the joint, exhaust noise when the engine is under load, and an increase in differential pressure across the DPF (due to air entering downstream of the sensor). A leaking clamp can cause the ECU to misinterpret soot load, leading to unnecessary regeneration cycles or a derate. More seriously, a hot exhaust leak can damage nearby wiring harnesses, air lines, or even start a fire.
The cost of a genuine XCMG 800161555 clamp is approximately $65–85. However, a failed clamp that allows hot exhaust to melt a $2,500 engine wiring harness can quickly escalate. Preventive replacement every 6,000 hours or when any discoloration of the band is observed is strongly recommended. Counterfeit clamps (often made of mild steel with a chrome finish) may rust through in 500 hours, causing catastrophic clamp failure and exhaust separation.
Authentic XCMG 800161555 clamps have the part number and “XCMG” logo laser-engraved on the band. The investment-cast retainers show a smooth, uniform surface. The bolt has a “10.9” grade marking and a flanged head. The packaging includes a barcode label and a holographic authenticity sticker. Counterfeit clamps often have a rough, sand-cast retainer, unmarked bolts, and a band that is magnetic (indicating cheaper 409 or plain steel).
A simple field test: genuine clamps can withstand a 28 Nm torque without thread galling; counterfeits often strip at 20 Nm. Also, heat the clamp to 400°C and let it cool – genuine 304 stainless will show no discoloration; counterfeit steel will turn blue or scale. Always purchase from authorized XCMG dealers to avoid dangerous counterfeits.
During every 1,000-hour service, inspect the V‑band clamp for rust, cracks, or deformation. Pay special attention to the band near the hinge – this area experiences the highest stress. If any red rust is visible (on 304 stainless it indicates severe contamination), replace the clamp. Check the bolt for thread damage. Use a torque wrench to verify the clamp is still at 28 Nm; if it has loosened below 20 Nm, the clamp has likely stretched and must be replaced.
For high-hour fleets (over 12,000 hours), XCMG recommends replacing all exhaust V‑band clamps as a preventive measure. The cost of a full set of clamps (three per truck) is under $250, which is negligible compared to the cost of an engine compartment fire. Keep one spare clamp per five trucks in your service inventory.
XCMG’s V‑clamps are manufactured in ISO 14001‑certified facilities. The stainless steel is sourced from mills with 85% recycled content. The zinc flake coating on the bolt is free of hexavalent chromium, complying with EU ELV and RoHS directives. By using a genuine clamp, you prevent exhaust leaks that could release untreated diesel particulates and NOx, protecting air quality. At end of life, the stainless steel band and cast retainers are 100% recyclable.
XCMG also operates a core return program for used V‑band clamps; contact your dealer for details. Choosing genuine components supports responsible manufacturing and a circular economy.
If you detect a leak after installation, first re-torque to 28 Nm – sometimes the bolt may have been under-torqued. If the leak persists, remove the clamp and inspect the flange faces for warpage using a straightedge. Flange warpage >0.5 mm requires replacement of the component (DPF or pipe). Also check the V‑groove for nicks or debris; clean with a wire brush. If the clamp band has visible gaps between the flange rings, the clamp may be too large (wrong size). Order the correct diameter clamp for your exhaust system.
For persistent leaks on a known-good flange, apply a high-temperature exhaust sealant (e.g., 3M™ 08865) to the V‑groove as a temporary fix, but plan to replace the clamp soon. Never weld a V‑band clamp – heat destroys the spring temper. Always install a new clamp when reconnecting exhaust components.
