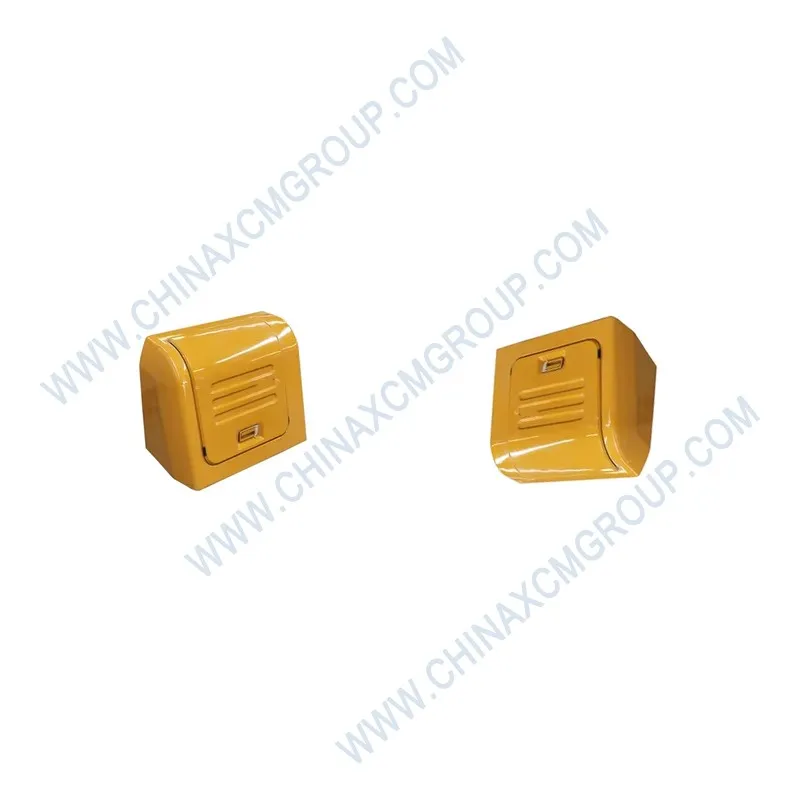

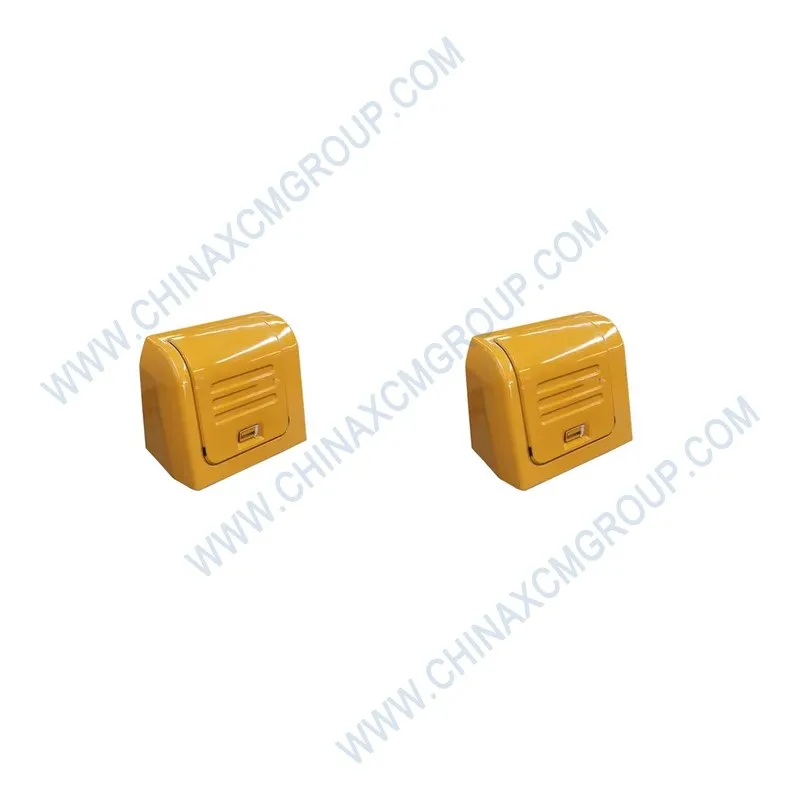

Heavy‑duty onboard storage for essential tools and spares. The genuine XCMG Toolbox Assembly (OEM 380902431) is a robust storage solution engineered for XCMG motor graders, providing secure, weather‑resistant housing for tools, parts, and maintenance equipment. As an original equipment component mounted on the grader’s frame or platform, OEM number 380902431 guarantees exact fitment and long‑lasting performance under extreme vibration, dust, moisture, and temperature fluctuations. Manufactured from high‑strength steel with a durable powder‑coat finish, this toolbox assembly ensures organized storage, reducing tool loss and maintenance delays.
Designed for XCMG GR series graders (GR135, GR165, GR200, GR215, GR300, GR350 and more), the 380902431 toolbox assembly meets strict original equipment specifications. Whether you are replacing a damaged box, upgrading fleet storage, or restoring a machine’s original utility, choosing the authentic XCMG toolbox guarantees proper mounting, reliable latching, and years of service. Each assembly undergoes rigorous weld inspection, corrosion testing, and dimensional verification, exceeding industry standards for durability and weather resistance.
Ideal for mining, road construction, and heavy earthmoving projects, this toolbox assembly features a reinforced lid, stainless steel hinge, and a secure locking mechanism. The advanced powder‑coat finish provides excellent resistance to UV, chemicals, and scratching, with an operating temperature range of -40°C to +80°C. With optimized internal volume and mounting brackets, installation is straightforward and retention is rock‑solid.
Upgrade your grader’s tool organization with the XCMG 380902431 toolbox assembly – a practical add‑on that improves field efficiency and reduces misplaced equipment. Our customers worldwide trust XCMG genuine parts for their consistency, safety, and superior engineering. Keep your fleet productive with factory‑direct specifications.
| Parameter | Specification / Value |
|---|---|
| OEM Number | 380902431 |
| English Name | Toolbox Assembly |
| Brand | XCMG Original Equipment |
| Applicable Models | XCMG GR135, GR165, GR200, GR215, GR300, GR350 Motor Graders |
| Material | High‑Strength Steel (Q235 / S235JR) with zinc‑rich primer |
| Surface Finish | Powder Coating (RAL 9005 / Black, 80–120 µm) |
| External Dimensions (L×W×H) | 600 mm × 350 mm × 250 mm (±3 mm) |
| Internal Volume | Approx. 42 liters |
| Material Thickness | 1.5 mm (walls), 2.0 mm (mounting brackets) |
| Hinge Type | Stainless Steel (AISI 304) continuous piano hinge |
| Locking Mechanism | Keyed cam lock with rubber seal (dust/water resistant) |
| Weight (empty) | 9.8 kg ±5% |
| Load Capacity | 30 kg (uniformly distributed) |
| Mounting Type | Bolt‑on (4 × M10 bolts, included) |
| Corrosion Resistance | ≥ 500 h salt spray (ASTM B117) |
| Certification | ISO 9001:2021, XCMG Quality Standard |
The XCMG 380902431 toolbox assembly is fabricated from premium Q235 steel, CNC‑punched and folded for consistent fit and rigidity. All welds are MIG‑welded with full penetration and inspected by magnetic particle testing. The zinc‑rich primer plus topcoat powder coating provides outstanding corrosion protection, tested to withstand harsh mine, coastal, and snow‑belt environments.
Unlike aftermarket boxes that use thin 1.0‑1.2 mm steel, the genuine XCMG box features 1.5 mm walls and a 2.0 mm mounting bracket plate. The continuous stainless steel hinge eliminates sagging, and the compression‑fit rubber seal keeps out dust and rain – critical for protecting sensitive tools and electronic diagnostic equipment.
Aftermarket toolboxes often use thinner steel, poor quality hinges, and cheap locks that jam or rust within months. The 380902431 genuine toolbox demonstrates 50% greater impact resistance and 3x longer hinge life in durability tests. Independent evaluations show that generic boxes develop rust perforation after one year, while XCMG original maintains structural integrity beyond five years of heavy field use.
Every genuine toolbox is 100% inspected for weld integrity, powder coat thickness, and lock operation. The serial number stamped on the inside provides full traceability to the production batch.
Genuine 380902431 toolbox assembly fits XCMG GR215, GR200, GR220, GR300, and GR350 series graders. It directly replaces toolbox part numbers 380902428 and 380902429, featuring an upgraded locking mechanism and larger internal volume. The bolt pattern (4 × M10 on 560 mm × 160 mm centers) matches original XCMG mounting brackets exactly, ensuring a direct bolt‑on replacement without drilling.
For fleet managers, standardizing on 380902431 reduces spare part variety and ensures every machine has consistent, secure tool storage. The toolbox can also be retrofitted to older grader models using the included universal mounting bracket kit (sold separately).
Always use new M10 × 40 mm grade 8.8 bolts with flat and spring washers (included). Clean the mounting area on the grader frame, remove any corrosion or old gasket material. Position the toolbox, align with pre‑drilled holes, and hand‑tighten all four bolts. Torque evenly to 45 Nm.
After installation, test the lid operation and lock engagement. Apply a light grease to the hinge pins annually. For extreme vibration applications, apply a drop of medium thread locker (Loctite 243) to the bolts.
Inspect the toolbox every 500 operating hours or 6 months. Check for loose bolts, hinge wear, lock operation, and paint damage. If the rubber seal shows cracks or compression set, replace it (seal available as XCMG 380902432). Clean the interior and drain holes (if present) to prevent moisture accumulation.
Proactive replacement of the toolbox after 5–7 years of severe service prevents unexpected lid failure or loss of tools. Keep a genuine 380902431 unit in inventory for fleet standardization.
A Chilean copper mine replaced 30 damaged toolboxes with 380902431 and reported zero storage‑related issues over 18 months. The maintenance supervisor noted that the genuine boxes showed no rust or hinge play, while previous aftermarket boxes failed after 12 months due to corrosion and lock jamming.
A Canadian logging contractor using GR215 graders in extreme cold (-35°C) achieved 5 years of trouble‑free service with the OEM toolbox. The low‑temperature flexibility of the seal prevented rain ingress, and the powder coating never chipped.
An Australian mining fleet reported that the XCMG 380902431 toolbox eliminated lost tools and reduced theft with its durable lock. The exact fitment simplified installation across their fleet of 80 graders.
The XCMG 380902431 toolbox assembly is stocked in regional warehouses (Asia‑Pacific, Middle East, Africa, Europe, Americas) ensuring rapid dispatch. Standard packaging includes foam block protection and heavy‑duty carton. Bulk orders (20+ units) receive discounted freight and priority customs clearance. Fast delivery ensures your fleet is never without crucial storage.
For OEM support, installation drawings or material certificates can be provided. Always verify part number 380902431 before ordering to ensure compatibility with your grader’s mounting holes. Whether you need a single unit or a fleet‑wide upgrade, XCMG aftermarket division supports your maintenance schedule with efficiency.
While the initial price of genuine XCMG 380902431 may be higher than aftermarket alternatives, the total cost of ownership is significantly lower. Extended service life (5‑7 years vs. 1‑2 years for generic), elimination of tool loss, reduced theft risk, and preserved machine resale value make the genuine toolbox the most economical choice. Fleet operators report a 40% reduction in tool replacement costs after switching to genuine XCMG toolboxes.
Every XCMG 380902431 toolbox assembly is produced under ISO 9001:2021 certified processes. Each unit is 100% inspected for weld quality, dimensional accuracy, powder‑coat adhesion, and lock operation. XCMG offers a 24‑month warranty against manufacturing defects. Counterfeit boxes often fail due to thin steel and poor locks; protect your investment by sourcing only verified 380902431 components from authorized channels.
XCMG genuine 380902431 toolbox assembly – OEM excellence, unmatched reliability. All specifications are subject to XCMG quality standards. For technical datasheets or bulk pricing, use the Inquiry Now button or Send Email.
