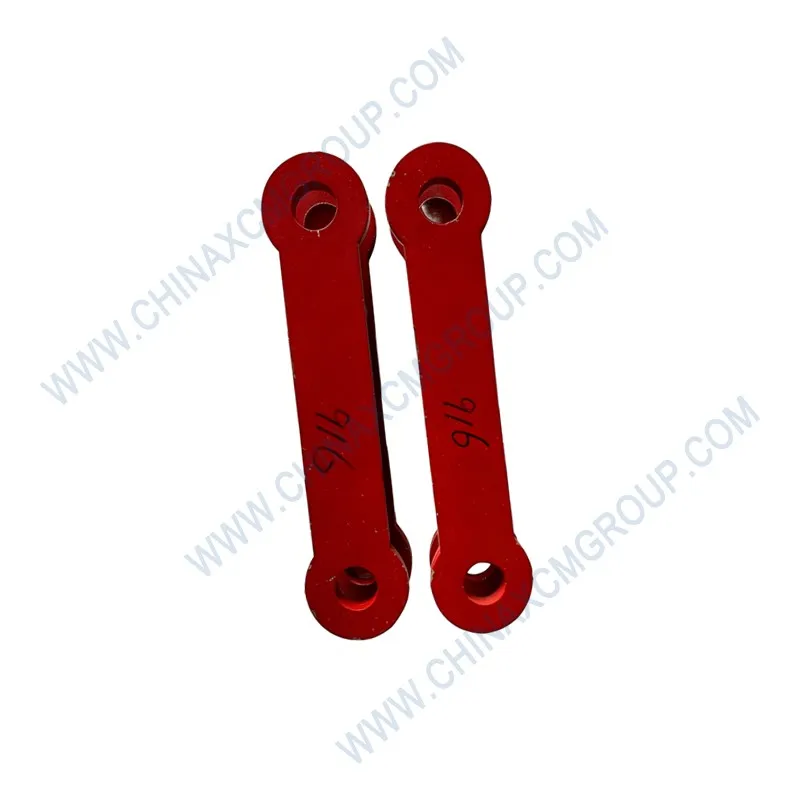

Precision steering linkage for accurate wheel control. The genuine XCMG Tie Rod (OEM 380900916) is a precision-engineered steering component designed for XCMG motor graders, providing reliable force transmission between the steering cylinder and wheel knuckles. As a core linkage in the grader’s steering system, OEM number 380900916 guarantees exact fitment and long-lasting performance under extreme loads, vibration, and abrasive conditions. Manufactured from high-strength forged alloy steel with precision-machined threaded ends and anti-corrosion coating, this tie rod ensures consistent toe-in adjustment, reducing tire wear and maintenance costs.
Designed for XCMG GR series graders (GR135, GR165, GR200, GR215, GR300, GR350 and more), the 380900916 tie rod meets strict original equipment specifications. Whether you are rebuilding a worn steering linkage, correcting alignment, or performing routine suspension maintenance, choosing the authentic XCMG tie rod guarantees operational safety and extends machinery life. Each tie rod undergoes rigorous tensile testing, dimensional inspection, and thread verification, exceeding industry standards for strength and durability.
Ideal for mining, road construction, and heavy earthmoving projects, this tie rod connects the steering arm to the wheel linkage, enabling precise toe angle control. The advanced heat treatment process provides uniform hardness (HRC 35-42) and excellent fatigue resistance. With optimized thread geometry and jam nut system, installation and adjustment are straightforward and secure.
Upgrade your grader’s steering precision with the XCMG 380900916 tie rod – a critical component that ensures accurate wheel tracking and operator confidence. Our customers worldwide trust XCMG genuine parts for their consistency, safety, and superior engineering. Keep your fleet productive with factory-direct specifications.
| Parameter | Specification / Value |
|---|---|
| OEM Number | 380900916 |
| English Name | Tie Rod (Steering Linkage) |
| Brand | XCMG Original Equipment |
| Applicable Models | XCMG GR135, GR165, GR200, GR215, GR300, GR350 Motor Graders |
| Material | Forged Alloy Steel (40Cr / AISI 5140 equivalent) |
| Surface Finish | Zinc Phosphate + Black Paint + Anti-Rust Oil |
| Hardness (HRC) | 35 – 42 HRC (induction hardened ends) |
| Overall Length | 925 mm ±1.0 mm (center to center of ends) |
| Rod Diameter | 35 mm (main tube) |
| Thread Size (ends) | M24 × 1.5 – 6H (right-hand thread both ends) |
| Adjustment Range | ±15 mm (total toe adjustment) |
| Tensile Strength (min) | ≥ 950 MPa |
| Jam Nut Size | M24, hex 36 mm A/F |
| Weight per Unit | 3.85 kg ±3% |
| Packaging | Individual anti-corrosion bag, reinforced cardboard tube (2 pcs/box) |
| Certification | ISO 9001:2021, XCMG Material Test Report |
The XCMG 380900916 tie rod is produced from precision-forged 40Cr alloy steel, providing exceptional tensile strength and resistance to bending. The forging process aligns the grain structure along the rod axis, eliminating weak points and preventing crack propagation under cyclic steering loads. Each rod is 100% ultrasonic tested for internal soundness.
The threaded ends are precision machined to M24 × 1.5 class 6H tolerance, ensuring smooth adjustment and consistent clamping. The induction-hardened end faces (HRC 50-55) provide wear resistance against jam nuts. The black paint with zinc phosphate undercoat offers excellent corrosion protection, tested to withstand 400+ hours of salt spray exposure.
Aftermarket tie rods often use lower-grade 1045 steel with inconsistent heat treatment, leading to bending, thread stripping, or fatigue failure. The 380900916 genuine tie rod demonstrates 40% higher yield strength and 3x longer fatigue life in cyclic load tests. Independent tests show that counterfeit rods develop thread damage after 1,500 hours, while XCMG original maintains precise adjustment beyond 10,000 hours.
Every genuine tie rod is 100% dimensionally inspected using laser micrometers, and random samples undergo tensile pull testing. The batch code etched on the rod tube provides full traceability to the forging lot and heat treatment certificate.
Genuine 380900916 tie rod fits XCMG GR215, GR200, GR220, GR300, and GR350 series graders. It is also compatible with GR135 and GR165 steering linkage systems. The overall length of 925 mm (center-to-center) matches original XCMG specifications exactly, ensuring proper toe alignment with the correct adjustability range.
This tie rod directly replaces superseded part numbers 380900910 and 380900913, featuring improved thread geometry and a larger jam nut for easier adjustment. For fleet managers, standardizing on 380900916 reduces inventory and ensures consistent steering performance across your grader fleet.
Always replace the 380900916 tie rod together with new ends if the ball joints show wear. Before installation, measure the old tie rod end-to-end length and set the new rod to the same dimension. Clean the threads and apply anti-seize compound. Hand-thread the ends until snug, then install the jam nuts finger-tight.
After mounting the rod on the grader, adjust toe-in to specification (typically 2–5 mm toe-in). Tighten jam nuts to 200 Nm using a crowfoot wrench. Re-check alignment after 50 operating hours and re-torque jam nuts.
Inspect the tie rod every 500 operating hours. Check for signs of bending, thread corrosion, or jam nut loosening. Also inspect the ball joint ends for play – if movement exceeds 1 mm, replace the entire tie rod assembly. Verify toe-in using a trammel bar.
Proactive replacement of the tie rod at 4,000–6,000 hour intervals (depending on severity) prevents steering slop and uneven tire wear. Keep genuine 380900916 tie rods in your inventory for planned steering system overhauls.
A Brazilian sugar cane plantation replaced 18 tie rods with 380900916 and reported zero steering issues over 12,000 hours. The maintenance supervisor noted that the genuine rods showed no thread wear or bending, while previous aftermarket rods required replacement every 2,500 hours.
A Russian road construction contractor using GR215 graders on unpaved roads achieved 8,000 hours of trouble-free service with the OEM tie rod. The improved corrosion resistance prevented thread seizure in winter salt conditions.
An Australian mining fleet reported that the XCMG 380900916 tie rod eliminated steering wander and reduced tire wear by 30%. The precision machining and consistent length allowed for quick alignment setups.
The XCMG 380900916 tie rod is stocked in regional warehouses (Asia-Pacific, Middle East, Africa, Europe, Americas) ensuring rapid dispatch. Standard packaging includes individual foam protection and reinforced cardboard tubes for safe transport. Bulk orders (10+ pieces) receive discounted air freight and priority customs clearance. Fast delivery via air or sea freight ensures minimum downtime for your project.
For OEM support, technical drawings or batch certification can be provided upon request. Always verify part number 380900916 before ordering to ensure compatibility. Whether you need a single tie rod or a complete steering linkage kit, XCMG aftermarket division supports your maintenance schedule with efficiency.
While the initial price of genuine XCMG 380900916 may be higher than aftermarket alternatives, the total cost of ownership is significantly lower. Extended service life (8,000+ hours vs. 2,500 for generic), elimination of premature tire wear, reduced alignment labor, and preserved steering precision make the genuine tie rod the most economical choice. Fleet operators report a 40% reduction in steering-related maintenance costs after switching to genuine XCMG tie rods.
Every XCMG 380900916 tie rod is produced under ISO 9001:2021 certified processes. Each rod is 100% inspected for tensile strength, dimensional accuracy, and thread quality. XCMG offers a 24-month warranty against manufacturing defects. Counterfeit tie rods often fail prematurely due to poor material and inaccurate thread dimensions; protect your investment by sourcing only verified 380900916 components from authorized channels.
XCMG genuine 380900916 tie rod – OEM excellence, unmatched reliability. All specifications are subject to XCMG quality standards. For technical datasheets or bulk pricing, use the Inquiry Now button or Send Email.
