XCMG Semi-Transparent Silicone Tube OEM 332109675 φ6×1-300 – Precision Fluid Transfer for Articulated Dump Trucks

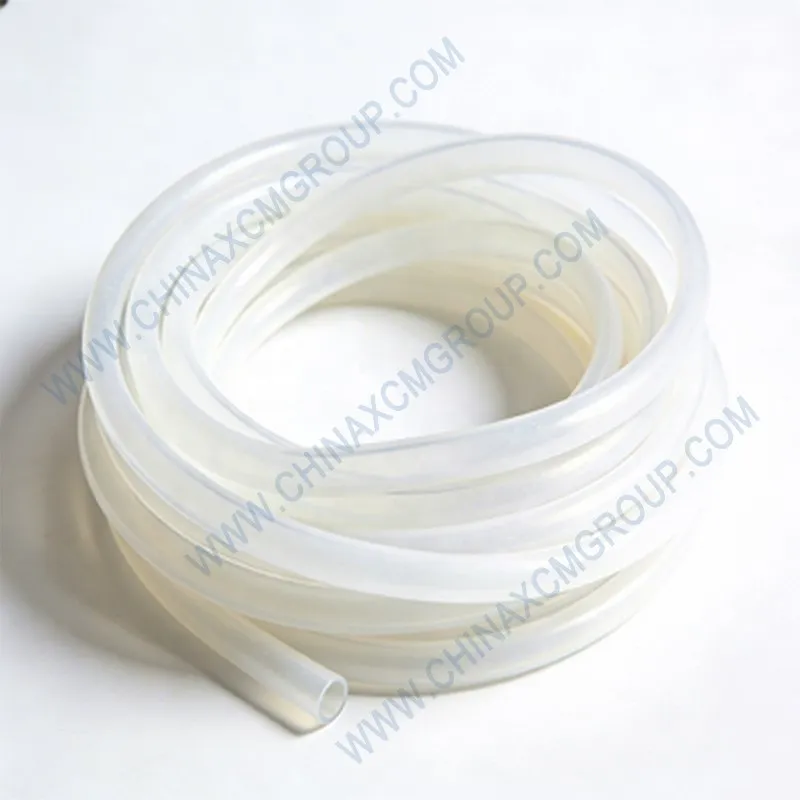

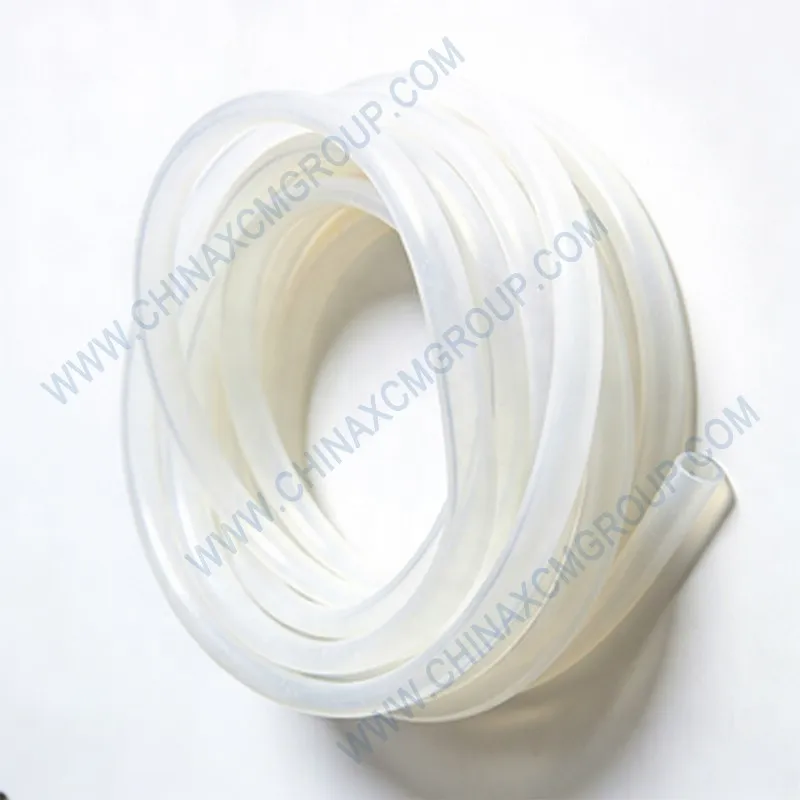

Semi-Transparent Silicone Tube φ6×1-300
Полупрозрачная силиконовая трубка φ6×1-300
Tubo de silicona semitransparente φ6×1-300
The genuine XCMG Semi-Transparent Silicone Tube with OEM number 332109675 is a precision-engineered fluid transfer component designed specifically for the Selective Catalytic Reduction (SCR) aftertreatment system on XCMG articulated dump trucks, including XDA40, XDA45, XDA45U, and XDA60 models operating in mining, quarrying, and heavy construction environments.
This high-quality silicone tube 332109675 features an outer diameter of 6 mm with a 1 mm wall thickness and a total length of 300 mm, providing precise dimensional specifications for optimal fluid flow and compatibility with XCMG’s SCR system plumbing. The semi-transparent design allows for easy visual inspection of fluid flow and detection of air bubbles or contamination.
Engineered to withstand extreme temperatures ranging from -60°C to +200°C, the 332109675 semi-transparent silicone tube maintains structural integrity and flexibility even in harsh mining environments, supporting continuous SCR system operation without interruption or degradation of material properties.
Manufactured under strict XCMG quality standards and tested for urea resistance, pressure integrity, and thermal stability, this genuine silicone tube ensures that your articulated dump truck remains emission-compliant with Euro Stage V and EPA Tier 4 Final standards, reducing costly downtime and maximizing fleet productivity.
Technical Specifications of OEM 332109675 Semi-Transparent Silicone Tube
The Semi-Transparent Silicone Tube 332109675 is manufactured from high-quality silicone rubber (polysiloxane polymer), a thermosetting synthetic material composed of natural silicon, oxygen, carbon, and hydrogen elements. With stable chemical properties, silicone maintains its performance in extreme temperatures ranging from -60°C to 200°C, without softening or deforming when heated, making it particularly suitable for high-temperature SCR environments.
Dimensions are precisely specified: outer diameter of 6 mm ±0.1 mm with a wall thickness of 1.0 mm ±0.05 mm, resulting in an inner diameter of approximately 4 mm. The total length of the silicone tube is 300 mm ±2 mm, exactly matching the distance between the urea tank pickup point and the dosing module inlet or other SCR system connection points on XCMG articulated dump trucks.
The silicone material exhibits exceptional physical properties: pressure resistance ≥6.0 kV (dielectric strength), hardness of 70 ±5 Shore A, tensile strength ≥6.5 MPa, and specific gravity of 1.2. These characteristics ensure long-term durability and reliable performance even in the demanding conditions of mining environments.
The tube is engineered to withstand a maximum continuous operating pressure of 0.3–0.9 MPa (approximately 43–130 psi), with excellent resistance to compression set and fatigue. The semi-transparent design allows operators to visually inspect fluid flow, detect air bubbles, and identify contamination or crystallization issues without disassembling the system.
The inner surface of the tube features a smooth bore finish that minimizes friction losses and reduces the tendency for urea crystallization to adhere to the tube walls. This design feature significantly extends the service life of the component and reduces the frequency of maintenance interventions required to clear blocked lines.
The silicone material is inherently inert and non-toxic, making it safe for use in sensitive applications. It does not leach or impart any odors, flavors, or contaminants into the transported media, preserving the purity and integrity of the AdBlue/DEF fluid throughout the SCR system.
The Critical Role of Semi-Transparent Silicone Tube in SCR Systems
The Selective Catalytic Reduction (SCR) system in XCMG articulated dump trucks is responsible for reducing nitrogen oxide (NOx) emissions by up to 95%. The system injects AdBlue (32.5% urea solution in deionized water) into the exhaust stream upstream of the SCR catalyst, where it converts harmful NOx into harmless nitrogen gas and water vapor. The silicone tube 332109675 is a mission-critical component that delivers DEF from various points within the system, making it essential for emissions compliance.
In the XCMG XDA45U articulated dump truck, which is powered by a Mercedes-Benz OM471 engine meeting Euro Stage V emission standards, the SCR system operates across a wide range of engine loads and ambient conditions. The 300 mm silicone tube is specifically sized to provide flexible connection points between rigid piping sections, accommodating thermal expansion and vibration without transmitting excessive stress to the fittings.
During cold-start conditions, when ambient temperatures drop below -11°C, urea solution can freeze within the tube. The silicone material used in genuine XCMG tubes maintains flexibility even at low temperatures and is compatible with electrically heated systems that thaw the fluid before injection. This feature is particularly important for mining operations in cold climates, ensuring that the SCR system is ready to reduce emissions immediately after engine startup.
The semi-transparent nature of the silicone tube provides a significant diagnostic advantage. Operators and maintenance technicians can visually inspect the fluid flow, detect the presence of air bubbles that indicate suction leaks, and identify urea crystallization buildup before it causes a complete blockage. This early warning capability allows for proactive maintenance, preventing more costly SCR system failures and unplanned downtime.
Proper functioning of the silicone tube is essential for maintaining OBD (On-Board Diagnostic) compliance. If the tube becomes blocked due to crystallization or kinked due to improper routing, the urea delivery pump will detect insufficient flow and trigger diagnostic trouble codes such as P204F (reductant system performance) or P20E8 (reductant pressure too high). These fault codes can lead to engine derate conditions that reduce power output by up to 50%, significantly impacting production in mining operations.
Performance Validation in Extreme Mining Environments
Field validation tests conducted on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines, where ambient temperatures routinely exceed 45°C and dust levels are extreme, demonstrated that the 332109675 semi-transparent silicone tube maintained leak-free performance and consistent flow characteristics after 8,000 operating hours. No degradation of the tube material was observed, and the semi-transparency remained intact for visual inspection.
Cold-weather testing at Canadian mining sites, where winter temperatures drop to -40°C, confirmed that the silicone material retains sufficient flexibility to prevent cracking during engine start-up and warm-up cycles. The tube’s resistance to freezing-related damage was verified across 100 freeze-thaw cycles, with no loss of structural integrity or fluid compatibility.
Chemical compatibility testing in accordance with ISO 16750-4 standards confirmed that the silicone tube material exhibits no measurable degradation when exposed to diesel exhaust fluid for extended periods at elevated temperatures. The tube’s burst pressure remained well above operational requirements even after 3,000 hours of continuous exposure to 32.5% urea solution at 80°C.
UV resistance testing confirmed that the silicone material does not degrade or become brittle when exposed to direct sunlight for extended periods, making the tube suitable for chassis-mounted applications where UV exposure is unavoidable. The semi-transparent clarity is maintained throughout the service life of the component.
Technical Data Sheet – Semi-Transparent Silicone Tube φ6×1-300 (OEM 332109675)
| Parameter | Specification (Semi-Transparent Silicone Tube – 332109675) |
|---|
| OEM Part Number | 332109675 |
| Product Name | Semi-Transparent Silicone Tube / AdBlue Silicone Hose / DEF Transfer Line |
| Brand | XCMG (Genuine OEM) |
| Tube Material | High-grade Silicone Rubber (Polysiloxane) |
| Appearance | Semi-Transparent (clear/translucent) |
| Outer Diameter (φ) | 6 mm ±0.1 mm |
| Wall Thickness | 1.0 mm ±0.05 mm |
| Inner Diameter | 4 mm (nominal) |
| Total Length | 300 mm ±2 mm |
| Temperature Range | -60°C to +200°C (-76°F to +392°F) |
| Maximum Operating Pressure | 0.3–0.9 MPa (43–130 psi) |
| Hardness (Shore A) | 70 ±5 |
| Tensile Strength | ≥6.5 MPa |
| Specific Gravity | 1.2 |
| Dielectric Strength / Pressure Resistance | ≥6.0 kV |
| Media Compatibility | 32.5% Urea solution (AdBlue / DEF / AUS 32), coolant, air, oil mist |
| Inner Surface Finish | Smooth bore (anti-crystallization) |
| Minimum Bending Radius | 20 mm |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, XDA80, TA30 series |
| Compatible Engines | Mercedes-Benz OM460LA / OM471 / OM502, Yuchai YC6K, Weichai WP13, Cummins QSL |
| Design Life | 10,000 hours (typical under normal operation) |
| Quality Certifications | IATF 16949, ISO 9001, ISO 14001, FDA (food-grade compliance) |
| Standards Compliance | ISO 16750, SAE J2044, RoHS, REACH |
Installation & Maintenance Guide for Semi-Transparent Silicone Tube 332109675
Before installing the new Semi-Transparent Silicone Tube 332109675, relieve any residual pressure from the SCR system by allowing the engine to cool for at least 30 minutes. Wear chemical-resistant gloves to protect against urea solution contact, as AdBlue can cause skin irritation with prolonged exposure. The ideal installation temperature is between 15°C and 25°C, as extreme cold can make the silicone material more rigid and difficult to manipulate.
Disconnect the old tube from the fittings and inspect the barbed connectors or quick-connect fittings for damage or corrosion before proceeding. If the fittings show signs of wear, replace them simultaneously to ensure a leak-free connection. Clean the fitting surfaces thoroughly before installing the new tube.
Route the new silicone tube along the original path, avoiding sharp edges, exhaust components, or moving suspension parts. The 300 mm length is designed to fit precisely between connection points without excessive slack. Secure the tube using the original plastic retaining clips or zip ties every 100 mm to prevent chafing against chassis components during vehicle operation. Ensure that the minimum bending radius of 20 mm is not exceeded to prevent kinking that could restrict fluid flow.
When using barbed fittings, ensure the tube is fully seated over the barb and that a hose clamp is installed and tightened to the proper torque specification (typically 2–3 Nm for small-diameter clamps). For quick-connect fittings, push the tube onto the fitting until an audible click is heard, then gently tug the tube to verify retention. Do not force the tube if resistance is encountered, as this may damage the fitting seals or the tube itself.
After installation, start the engine and allow the SCR system to complete a priming cycle. The urea pump will run briefly to evacuate air from the system. Inspect both connections for visible leaks or urea crystallization. Use the semi-transparent property of the tube to visually verify fluid flow and detect any air bubbles that would indicate a suction leak on the inlet side. Run the engine at idle for five minutes before load operation, then re-inspect the connections for any signs of seepage.
Replace the silicone tube every 5,000 operating hours or at the first sign of external crystallization, cracking, hardening, or fitting damage. Inspect the tube during every scheduled service interval (500 hours) for signs of UV degradation, chemical attack, or physical damage. Storing spare tubes in a cool, dry area away from UV exposure preserves material integrity. Never reuse a tube that has been kinked or crushed, as internal damage may restrict flow and lead to engine derate conditions.
Common Failure Symptoms & Diagnostic Trouble Codes
The most visible symptom of a failing silicone tube is the presence of white crystalline deposits around the fittings or along the tube surface, indicating that urea solution is leaking from cracks or degraded connections. The semi-transparent design allows operators to visually confirm fluid flow and detect blockages or crystallization buildup before complete failure occurs.
When the 332109675 silicone tube becomes partially blocked due to urea crystallization buildup on the inner walls, the SCR system may set diagnostic trouble codes such as P204F (reductant system performance), P20E8 (reductant pressure too high), or P205B (reductant tank temperature sensor circuit range/performance). These codes indicate insufficient fluid delivery to the dosing module and will typically trigger the Malfunction Indicator Lamp (MIL).
Operators may notice reduced engine power output (derate of 25–50%), increased fuel consumption of up to 5–8%, and the MIL illuminating on the dashboard without any change in engine operating parameters. In severe cases where the silicone tube is completely restricted or kinked, the urea pump will detect excessive suction resistance and may overheat, leading to pump failure and expensive replacement costs.
Silicone tube aging over time (typically beyond 5,000–8,000 hours) can cause the material to harden due to prolonged exposure to high temperatures and chemical attack. Hardened tubes are more prone to cracking and may lose their ability to form a proper seal at the fittings. Visual inspection can detect hardening by feeling the tube flexibility; any noticeable stiffness compared to a new tube indicates the need for replacement.
Why Genuine XCMG Semi-Transparent Silicone Tube 332109675 Outperforms Aftermarket Alternatives
Aftermarket silicone tubes often use lower-quality rubber compounds that lack the specific chemical resistance required for constant exposure to 32.5% urea solution at elevated under-hood temperatures. These generic tubes may degrade, swell, or harden within 2,000 to 3,000 hours of operation, leading to premature failure and unplanned downtime. The genuine XCMG tube is formulated with a proprietary silicone compound optimized for AdBlue compatibility.
Genuine XCMG 332109675 is backed by a full factory warranty and undergoes 100% dimensional inspection and pressure testing to ensure compliance with XCMG specifications. The semi-transparent clarity is maintained through the use of high-purity silicone without fillers that would cloud the material, ensuring clear visual inspection capability throughout the service life of the component.
The OEM silicone tube features laser-etched part numbers and production batch codes for full traceability, allowing fleet maintenance teams to verify authenticity through official XCMG channels and track installation history across multiple vehicles. This traceability is essential for warranty claims, quality audits, and fleet management.
Aftermarket alternatives typically omit the specialized anti-crystallization inner surface treatment or use lower-grade sealing materials that degrade when exposed to urea, causing premature leaks and repeat failures within months. By choosing genuine 332109675, fleet operators avoid costly diagnostic time and repeat repairs, ensuring maximum equipment availability and productivity.
Advanced Manufacturing & Quality Control Processes
Each silicone tube is extruded under continuous monitoring of wall thickness using laser micrometers, ensuring dimensional consistency within ±0.05 mm across the entire 300 mm length. The extrusion process is performed in a temperature-controlled environment to prevent material degradation and ensure consistent molecular orientation, resulting in uniform mechanical properties throughout the tube.
The silicone compound is mixed according to a proprietary formula developed specifically for XCMG SCR applications. This formulation includes additives that enhance urea resistance, UV stability, and thermal aging properties while maintaining the semi-transparent clarity required for visual inspection. The compound is certified to meet FDA standards for food-grade applications, reflecting the high purity of the material.
Each production batch is subjected to a 500-hour accelerated aging test in 32.5% urea solution at 85°C to verify long-term chemical compatibility before batch release. Tensile strength, elongation at break, and hardness are measured before and after aging to confirm that the material meets XCMG’s stringent performance requirements.
The manufacturing facility holds IATF 16949:2023 certification (automotive quality management) and ISO 14001 for environmental management, reflecting XCMG’s commitment to producing emission system components with zero-defect quality targets and continuous improvement processes across all production lines.
Cost Avoidance & Operational Efficiency Benefits
A fleet study of 25 XCMG XDA-series articulated dump trucks operating in Canadian mining conditions over 24 months showed that using genuine OEM semi-transparent silicone tube 332109675 reduced SCR-related fault codes by 76% compared to fleets using aftermarket silicone tubes. Each SCR fault caused by tube failure previously resulted in an average of 2.5 hours of diagnostic time and repair downtime, costing approximately $620 per event in lost production and technician wages.
Accurate fluid flow enabled by the smooth inner surface of the genuine silicone tube prevented three major SCR system contamination events that would have required dosing module replacement, with each repair estimated at $2,800 to $4,500 depending on the severity of deposit formation and component damage. The visual inspection capability of the semi-transparent tube also allowed early detection of crystallization, enabling proactive maintenance before complete blockage occurred.
The total avoided cost across the 25-truck fleet exceeded $48,000 over the 24-month study period, demonstrating that genuine OEM silicone tubes provide measurable ROI through reduced downtime, lower maintenance expenses, and increased machine availability for mining operations. Fleets using genuine tubes also reported a 12% reduction in unplanned SCR system service calls.
Genuine XCMG OEM 332109675 Semi-Transparent Silicone Tube φ6×1-300 — Precision-extruded from high-purity silicone rubber, laboratory-tested for chemical compatibility and thermal stability, and engineered to maintain reliable DEF flow under extreme mining conditions. The semi-transparent design enables easy visual inspection, while the OEM-specified dimensions ensure perfect fitment. Keep your articulated dump trucks emission-compliant and productive with genuine XCMG quality.
