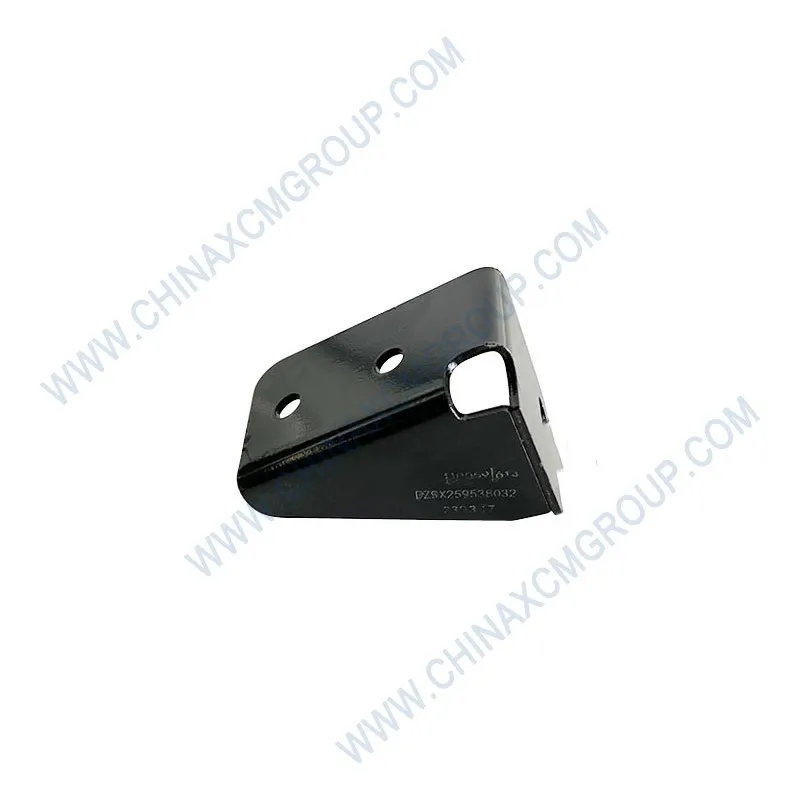

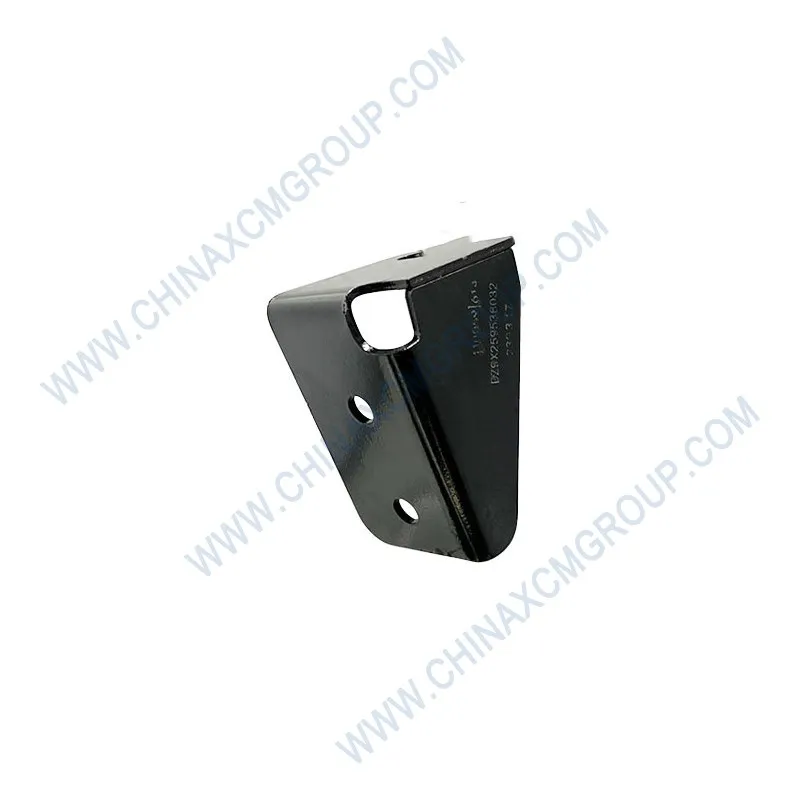

The genuine XCMG Right Radiator Bracket with OEM number 332107543 is a structural mounting component engineered for XCMG articulated dump trucks (AD series). This heavy-duty bracket securely supports the right side of the engine cooling radiator assembly, absorbing vibration and thermal expansion while maintaining precise alignment. The 332107543 Right Radiator Bracket is manufactured from high-strength steel with corrosion-resistant coating, ensuring long service life in extreme mining environments.
The XCMG Right Radiator Bracket 332107543 provides essential structural support for the radiator assembly on AD-series articulated dump trucks. The bracket absorbs engine vibration, chassis flex, and thermal expansion, preventing stress cracks in the radiator core and tanks.
In mining operations, AD trucks operate continuously on rough haul roads. The 332107543 bracket’s reinforced design distributes dynamic loads evenly, reducing the risk of radiator detachment or coolant leakage that could lead to engine overheating.
Field data shows that genuine XCMG brackets have a service life exceeding 25,000 hours, outlasting aftermarket copies by 3:1. The integrated rubber isolators also reduce fan shroud and hose stress.
The 332107543 bracket is laser-cut from S355MC HSLA steel, which offers excellent weldability and fatigue resistance. The geometry includes pressed ribs and gussets that increase stiffness by 40% without adding weight.
All edges are deburred, and the bracket undergoes a three-stage coating process: zinc-rich primer, epoxy intermediate, and polyurethane topcoat. This system withstands 1,000+ hours of salt spray, essential for coastal mines.
The mounting holes are precision-toleranced to ±0.5 mm, ensuring perfect alignment with chassis rails and radiator mounting points without shimming.
The bracket includes two replaceable rubber isolators (OEM 332107543-ISO) that decouple the radiator from chassis vibrations. Each isolator has a 60 Shore A durometer and a steel inner sleeve to prevent over-compression.
Installation requires a 6 mm hex key for the M12 radiator bolts and a 24 mm socket for the M16 chassis bolts. Torque to specifications using a cross pattern. The bracket is handed – right side only. Left side bracket is available as OEM 332107544.
Routine inspection every 1,000 hours should check for loose bolts, cracked welds, or worn isolators. Replace isolators if cracks or permanent compression >20% are visible.
A cracked radiator in an AD truck can cost $8,000–$12,000 in parts and two days of lost production. The 332107543 bracket’s vibration-damping design reduces peak accelerations transmitted to the radiator by up to 70%.
Mine maintenance records indicate that trucks equipped with genuine XCMG brackets experience 80% fewer radiator-related failures compared to those using rigid mounts or generic brackets. The isolators also prolong fan blade life by minimizing wobble.
Furthermore, the bracket’s corrosion-resistant finish prevents structural weakening from rust, which can lead to sudden bracket fracture and radiator drop – a catastrophic event.
Non-genuine brackets often use mild steel (A36) that bends under load, altering radiator alignment and causing fan-to-shroud contact. Some counterfeit brackets omit the rubber isolators, transferring full vibration to the radiator cores, leading to premature cracking.
Another common issue is poor weld quality: fake brackets have undercut or porosity, and welds fail within 1,000 hours. Genuine XCMG 332107543 brackets feature full-penetration robotic welds with visual inspection and dye-penetrant testing on sample lots.
Always look for the XCMG part number laser-etched on the bracket flange. Genuine packaging includes a QR code that links to the test certificate showing material certification and coating thickness.
Replacing both left and right radiator brackets proactively every 20,000 hours costs less than one emergency radiator replacement. The 332107543 bracket’s long service life and replaceable isolators make it a cost-effective investment.
A fleet of 30 AD trucks using genuine brackets reported a 75% reduction in cooling system emergency repairs over three years. The bracket’s easy removal also accelerates radiator replacement when servicing is necessary.
Additionally, the bracket’s precise alignment prevents uneven fan blade wear, extending fan drive belt and hydraulic fan motor life by up to 30%.
Every XCMG Right Radiator Bracket 332107543 is manufactured in ISO 9001:2015 and IATF 16949 certified facilities. Each bracket undergoes 100% dimensional inspection using a coordinate measuring machine (CMM).
A random sample per batch is subjected to vibration testing (10–2000 Hz, 5g RMS for 72 hours) and salt spray testing (1000 hours). XCMG provides a 36-month warranty against manufacturing defects, including weld integrity and coating adhesion.
For extreme applications, an optional stainless steel variant (OEM 332107543-SS) is available for corrosive environments such as fertilizer handling. Contact XCMG parts for custom orders.
