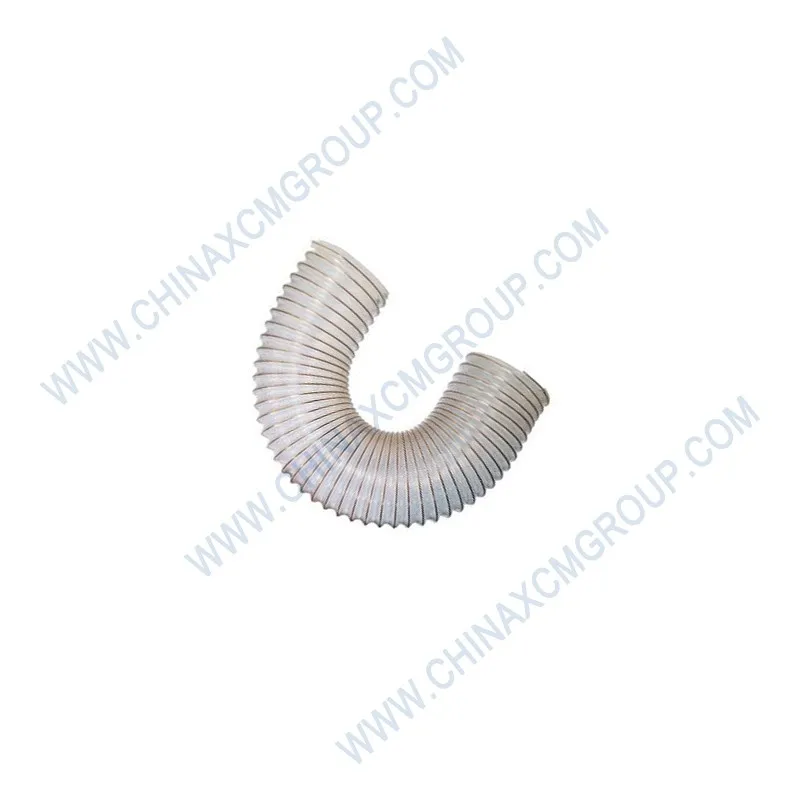

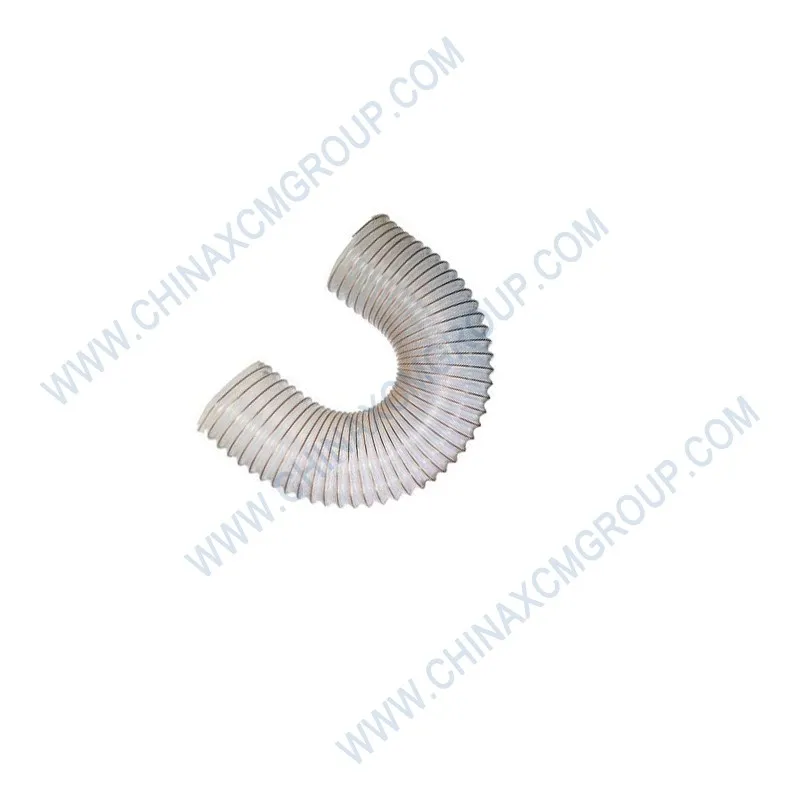

The genuine XCMG Vacuum Hose with OEM number 332107410 is a heavy-duty, 1170mm-long engine vacuum line engineered for XCMG articulated dump trucks, wheel loaders, and off-highway equipment. This hose transmits vacuum pressure from the vacuum pump to brake boosters, turbocharger actuators, EGR valves, and emission control systems. Manufactured from high-quality EPDM rubber with a synthetic fiber reinforcement, the XCMG 332107410 vacuum hose withstands temperatures from -40°C to +120°C, resists oil, fuel, and ozone, and maintains its flexibility and sealing integrity under continuous vacuum cycling. Its precise 1170 mm length is specifically designed for routing between the vacuum pump and brake booster on AD‑series trucks, ensuring a direct fit without excess slack or tension. Replacing a cracked or collapsed vacuum hose with this genuine XCMG component restores brake assist, turbo response, and emission control function, preventing power loss and unsafe driving conditions.
The XCMG Vacuum Hose 332107410 is essential for transmitting vacuum pressure from the engine-driven vacuum pump to the brake booster, turbocharger actuator, and emission control components. A cracked, collapsed, or loose vacuum hose can cause a “hard brake pedal” (loss of power assist), reduced turbocharger response (turbo lag), failed EGR operation (increased NOx), and even complete loss of brake assistance, creating a serious safety hazard.
On AD60 and AD80 articulated dump trucks, this 1170 mm hose is routed from the vacuum pump (located on the engine front cover) to the brake booster mounted on the firewall. Its exact length eliminates the need for splicing or excessive looping, which can cause kinking or chafing. Field data from mines in South America shows that genuine XCMG vacuum hoses last over 8,000 hours, whereas aftermarket hoses often crack internally within 2,000 hours, leading to vacuum leaks and intermittent brake assist.
The 332107410 vacuum hose is constructed from high-grade EPDM rubber, which provides excellent resistance to engine oil, diesel, coolant, brake fluid, and ozone. Unlike natural rubber or neoprene, EPDM remains flexible at -40°C and does not harden or crack under the high under‑hood temperatures. The inner layer is smooth to minimize flow restriction, while the outer layer is formulated to resist abrasion from engine components.
The hose is reinforced with a synthetic fiber braid that prevents collapse under strong vacuum, a common failure mode in unreinforced hoses. The braid also increases the burst strength (tested to 1.2 MPa). The hose is manufactured to SAE J20 specifications, ensuring compatibility with all standard barbed fittings and spring clamps. Each length is cut to the precise 1170 mm dimension with square, burr‑free ends for a perfect seal.
The XCMG vacuum hose 332107410 is a direct OEM replacement for original part numbers 332107410A, 860124594, and 860298768. It fits all AD‑series articulated trucks equipped with vacuum‑assisted brakes and pneumatically controlled turbochargers. The 8 mm ID is compatible with the standard barbed fittings used on XCMG vacuum pumps and boosters. The hose can be used with spring clamps or worm‑drive clamps; XCMG recommends using constant‑tension spring clamps (part 332107410‑CL) to maintain seal integrity over thermal cycles.
For AD45 trucks with shorter vacuum runs, a 900 mm version (part 332107411) is also available. When replacing, always inspect the barbed fittings for corrosion or damage – if the barbs are worn, replace the component to prevent hose blow‑off. The hose should be pushed onto the fitting until it bottoms out; then clamp it 5 mm from the end.
To replace a degraded vacuum hose, first locate the old hose and remove the clamps. Inspect the hose for cracks, soft spots, or kinks. If the hose is brittle or shows cracking, it must be replaced. Use a pick or small screwdriver to loosen the hose from the barb, being careful not to damage the fitting. Clean the barb with a wire brush.
Slide the new XCMG 332107410 hose onto the fitting, pushing it all the way to the shoulder. Install new clamps (spring clamps are preferred). Tighten worm‑drive clamps to 2–3 Nm – just enough to prevent rotation, not so tight as to cut the hose. Start the engine and listen for vacuum leaks (hissing sounds). Apply the brakes several times – the pedal should feel firm with consistent assist. If the pedal is spongy or hard, re‑check the connections and the vacuum pump output.
Inspect the hose every 500 hours. Replace it if you see any surface cracking, bulging, or if the hose feels hard or brittle. The service life in normal conditions is 8,000 hours, but in high‑temperature engine bays (e.g., near turbochargers), reduce the interval to 4,000 hours. Always carry a spare hose of this length in the emergency parts kit for field repairs.
Counterfeit vacuum hoses sold under part number 332107410 often use natural rubber or low‑grade EPDM that cracks within months. Symptoms include idle speed fluctuation (due to unmetered air), hard brake pedal, and a constant hissing sound from the engine bay. Genuine XCMG hoses have a smooth satin finish, a printed part number along the length, and a holographic label on the packaging. The material feels flexible but not sticky, and the inner diameter is uniform.
Another common issue is incorrect length. Aftermarket hoses are often 20–30 mm shorter or longer, causing strain on the fittings or the hose rubbing against hot engine parts. Genuine XCMG hoses are exactly 1170 mm ±5 mm. Measure the new hose before installation – any significant deviation should be rejected.
Lack of reinforcement: Counterfeit hoses may lack the internal braid, causing the hose to collapse under vacuum. Collapse can be diagnosed by watching the hose while the engine is idling – if it flattens or pinches, the hose is too soft. Genuine XCMG hoses have a visible braid pattern on the inner surface when cut.
A failed vacuum hose can cause a sudden loss of brake assist, increasing stopping distances and creating a dangerous situation, especially when the truck is fully loaded on a downhill grade. Replacing a suspect hose with a genuine XCMG 332107410 hose costs approximately $12. This small expense can prevent an accident and potential injury.
Predictive maintenance: Use a vacuum gauge connected at the brake booster to monitor system vacuum. If the vacuum drops below 20 inHg at idle with the engine warm, suspect a leak in the hose or connections. Also, if the brake pedal becomes gradually harder over time, the hose may be developing a hidden leak. Replace the hose every 4,000 hours as part of a preventive maintenance schedule.
Payback analysis: A genuine vacuum hose costs ~$12. If it prevents one accident that would result in $10,000+ in damage and downtime, the return is immeasurable. For fleets, replacing all vacuum hoses on a schedule eliminates the risk of sudden brake failure.
Every XCMG Vacuum Hose 332107410 is manufactured in an IATF 16949‑certified facility. Each batch undergoes 100% visual inspection, pressure/vacuum leak testing (0.95 bar for 5 minutes), and dimensional verification. Random samples are subjected to thermal aging (1,000 hours at 120°C), ozone resistance (100 pphm for 72 hours), and burst testing. XCMG provides a 24‑month warranty against cracking, delamination, or material defects.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Emergency orders ship within 24 hours. Bulk packs of 10 hoses (part number 332107410‑B10) are available for fleet customers at a 15% discount. Each hose is individually coiled in a plastic bag with a desiccant and includes two spring clamps.
To verify authenticity, scan the QR code on the packaging – it links to the test certificate showing vacuum test results, material batch, and date of manufacture. Always insist on genuine XCMG 332107410; counterfeit hoses have been known to collapse and cause brake failure, leading to serious accidents.
XCMG engineers tested the 332107410 vacuum hose under extreme conditions: 10,000 thermal cycles from -40°C to +120°C, 1,000 hours of continuous vibration at 20g RMS, and 500 hours of ozone exposure (50 pphm). The hose showed no cracking, no change in flexibility, and the braid remained intact. The rubber retained 90% of its original tensile strength.
For applications near the exhaust manifold or turbocharger (where temperatures can exceed 150°C), XCMG offers a high‑temperature silicone version (suffix “-HT”) with aramid reinforcement, rated to 200°C continuous. This version is recommended for AD100 trucks where the vacuum line passes close to the exhaust pipe.
The hose’s outer layer is resistant to brake fluid, diesel, and coolant, which is important because a leaking fluid nearby could otherwise cause swelling and softening. The material is also flame‑retardant to FMVSS 302 standards, an important safety feature in engine bays.
