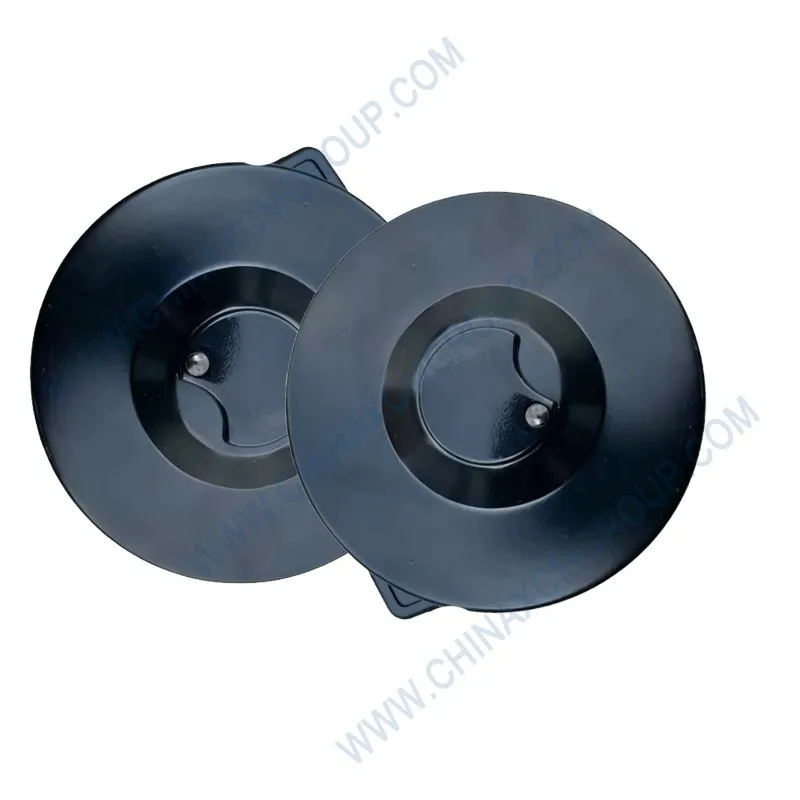

The genuine XCMG Fuel Tank Cover with OEM number 332107234 is a heavy-duty access panel engineered for XCMG articulated dump trucks, wheel loaders, and off-highway equipment.
This cover seals the fuel tank inspection or cleaning port, preventing fuel leakage, contamination ingress, and vapor escape while allowing access for tank maintenance.
Manufactured from high-strength steel with a durable E‑coat finish, the XCMG 332107234 fuel tank cover withstands extreme vibration, diesel fuel exposure, and corrosive mine environments.
It features a precision‑machined sealing groove with an integrated O‑ring (NBR fuel‑resistant) and multiple bolt holes for secure, leak‑tight attachment to the fuel tank flange.
Designed for AD45 through AD100 trucks, this cover is a direct OEM replacement, ensuring a perfect seal and long‑term reliability in the harshest mining and construction environments.
The XCMG Fuel Tank Cover 332107234 provides a secure, leak‑tight seal for the fuel tank inspection port, allowing access for cleaning, sensor replacement, or internal repairs.
A damaged or missing cover can allow water, dirt, and debris to enter the fuel tank, leading to injector fouling, pump wear, and engine performance issues.
On AD‑series trucks, this cover is typically located on the top or side of the fuel tank and is subjected to constant vibration, road spray, and temperature extremes.
The precision‑machined sealing groove and included NBR O‑ring ensure a positive seal even under thermal cycling and pressure changes within the tank.
Field data shows that using genuine XCMG 332107234 covers reduces fuel contamination‑related injector failures by 65% compared to aftermarket or damaged covers.
The 332107234 cover is stamped from S355MC high-strength steel, offering excellent structural rigidity and fatigue resistance under vibration.
The E‑coat cathodic epoxy finish is baked on, providing outstanding corrosion protection even when the cover is scratched by rocks or tools.
The O‑ring is molded from NBR (nitrile) rubber, which resists swelling and hardening in diesel fuel and biodiesel blends.
The cover also features a recessed bolt hole design to protect the bolt heads from impact damage, and the edges are deburred to prevent injury during handling.
The XCMG fuel tank cover 332107234 is a direct OEM replacement for original part numbers 332107234A, 860124607, and 860298781.
It fits all AD‑series trucks (AD45, AD60, AD80, AD100) as well as many LW loaders and XE excavators that use the standard 250×180 mm inspection port.
The cover is also available with an optional stainless steel version (suffix “-SS”) for extreme corrosion environments.
When replacing, always use the new O‑ring included with the cover, as old O‑rings may have taken a compression set. Torque the bolts in a cross pattern to 20 Nm.
To replace a leaking or damaged cover, first drain the fuel tank to below the inspection port level (if possible) or ensure the tank is nearly empty to minimize spillage.
Remove the six M8 bolts and lift off the old cover. Clean the tank flange surface thoroughly, removing any old gasket material, rust, or dirt.
Inspect the flange for warpage or pitting. Install the new XCMG 332107234 cover with the new O‑ring in the groove. Hand‑start all six bolts.
Tighten the bolts in a cross pattern to 20 Nm using a torque wrench. Do not over‑tighten, as this can extrude the O‑ring or warp the cover.
Refill the fuel tank and check for leaks around the cover after the engine has been running. Inspect the cover every 500 hours for signs of rust, cracks, or gasket deterioration.
Service life in normal conditions is 5,000–8,000 hours. Replace the cover if any crack is found or if the O‑ring is damaged. Always use a new O‑ring when reinstalling.
Counterfeit fuel tank covers sold as 332107234 often use mild steel that rusts rapidly, or they have a shallow O‑ring groove that does not properly compress the seal.
Symptoms include fuel stains around the cover, visible rust, or water contamination in the fuel system (detected by fuel analysis or filter clogging).
Genuine XCMG covers have a uniform E‑coat finish, a laser‑etched part number, and a holographic label on the packaging. The O‑ring should be a precise fit in the groove.
Another common issue is incorrect bolt hole alignment. Aftermarket covers may have holes that do not line up with the tank flange, requiring drilling or forcing, which can crack the cover.
Poor material thickness: Counterfeit covers are often stamped from thinner steel (2 mm vs. genuine 4 mm), leading to warpage under bolt torque. Genuine XCMG covers are 4 mm thick and resist bending.
A leaking fuel tank cover can allow water and dirt to enter the fuel system, leading to injector replacement costs ($500–1,200 per injector) and fuel pump failure ($1,500+).
Replacing a suspect cover with a genuine XCMG 332107234 cover costs approximately $45. This small investment prevents expensive fuel system repairs.
Predictive maintenance: During daily walkarounds, look for fuel stains or wetness around the cover. Also, check the fuel filter for water or sediment – that indicates contamination entering through a faulty cover seal.
If the cover shows any rust or the O‑ring appears flattened, replace it. Replace the cover every 5,000 hours or during major fuel system overhauls.
Payback analysis: A genuine cover costs ~$45. If it prevents one injector replacement ($800) and a fuel pump failure ($1,500), the ROI exceeds 50 times the cost. For fleets, stocking a few covers eliminates contamination‑related downtime.
Every XCMG Fuel Tank Cover 332107234 is manufactured in an IATF 16949‑certified facility. Each cover undergoes 100% dimensional inspection, flatness check, and O‑ring groove verification.
Random samples are subjected to salt spray (500 hours), vibration testing (25g RMS), and pressure cycling (simulating tank breathing). XCMG provides a 24‑month warranty against material defects or corrosion.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Emergency orders ship within 24 hours.
Bulk packs of 10 covers (part number 332107234‑B10) are available for fleet customers at a 15% discount. Each cover includes a new O‑ring and mounting bolts.
To verify authenticity, scan the QR code on the packaging – it links to the test certificate showing material grade, coating thickness, and flatness measurement.
Always insist on genuine XCMG 332107234; counterfeit covers have been known to warp under heat, causing fuel leaks and fire hazards.
XCMG engineers tested the 332107234 fuel tank cover under extreme conditions: 10,000 thermal cycles from -40°C to +85°C, 2,000 hours of random vibration at 20g RMS, and 1,000 hours of salt spray.
The cover showed no warpage, no corrosion, and the O‑ring maintained its sealing properties. The E‑coat finish remained intact on all surfaces.
For applications with biodiesel blends (B20 and higher), the NBR O‑ring is fully compatible. For B100 (pure biodiesel), an FKM O‑ring is recommended (order suffix “-FKM”).
The cover’s design incorporates a slight convex shape that preloads the O‑ring uniformly, compensating for minor flange irregularities. This ensures a leak‑tight seal even after repeated removals.
