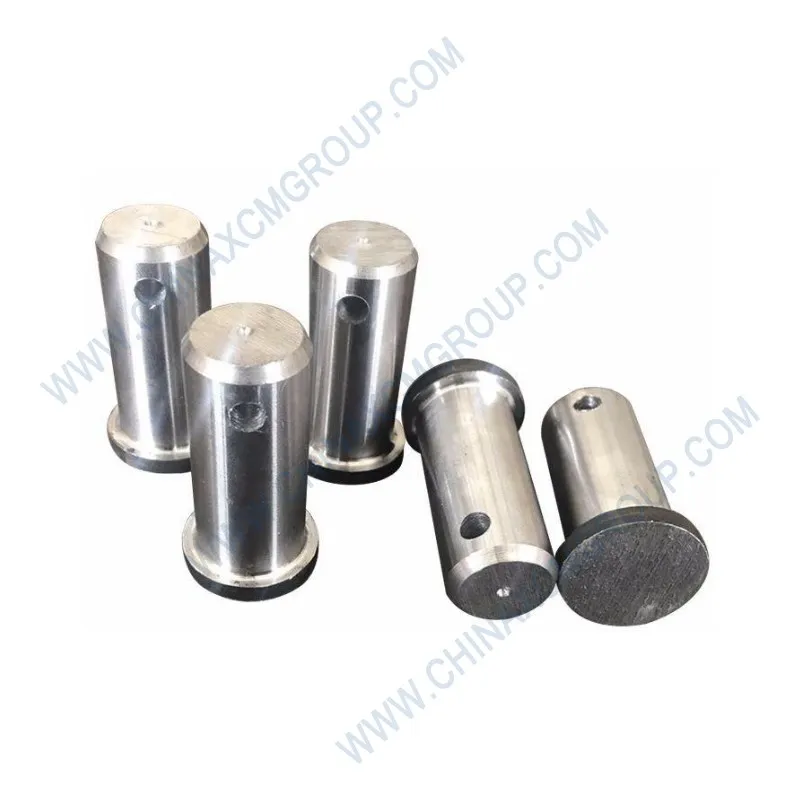

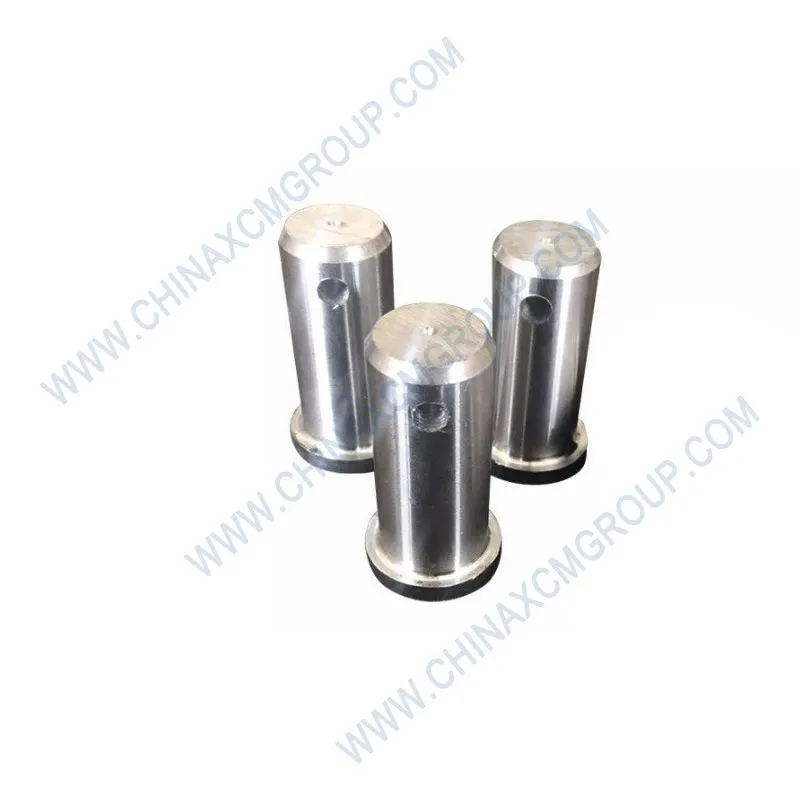

The 332106302 Pivot Pin is a precision-engineered articulation component designed to connect the front and rear frames of XCMG articulated dump trucks. As a critical non-engine structural part, this pivot pin enables smooth, controlled oscillation between chassis sections, allowing the vehicle to navigate uneven terrain with stability and agility. Manufactured from high-strength alloy steel with advanced heat treatment and a corrosion-resistant surface coating, the 332106302 pivot pin delivers exceptional durability, wear resistance, and reliable performance under extreme loads, making it an indispensable element for heavy-duty haulage, construction, and mining operations.
The 332106302 Pivot Pin is a precision-manufactured articulation component that forms the mechanical heart of the hinge connection between the front and rear frames of XCMG articulated dump trucks.
As a non-engine structural part, this pivot pin enables controlled oscillation, allowing the truck to maintain ground contact and stability on rough, uneven terrain.
The pin transfers vertical and lateral loads between the two chassis sections while accommodating rotational movement around the articulation axis.
Manufactured from high-strength alloy steel (42CrMo4) and subjected to rigorous heat treatment, the 332106302 pivot pin offers outstanding resistance to fatigue, impact, and wear.
Its precision-ground bearing surfaces and controlled hardness ensure smooth articulation, reduced friction, and extended service life for both the pin and the mating bushings.
This component is a direct OEM replacement, restoring original articulation geometry and preventing costly failures due to worn or deformed pivot pins.
The 332106302 Pivot Pin is engineered to provide a precise, low-friction pivot point that allows the front and rear frames to articulate independently.
This articulation is essential for maintaining traction on uneven ground, as it enables each axle to follow the terrain without twisting the chassis.
The pin’s precise dimensions and high surface finish ensure that the articulation joint operates with minimal play, reducing shock loads and vibrations that can damage other components.
The 332106302 Pivot Pin features a robust, cylindrical design that prioritises dimensional accuracy, surface integrity, and resistance to cyclic loading.
The pin is precision-turned and ground to achieve a diameter tolerance of ±0.02 mm and a surface roughness of Ra ≤ 0.8 µm, ensuring a perfect fit with the corresponding bushings.
Chamfered edges and a smooth transition radius at the ends prevent stress concentrations and facilitate easy installation without damaging seals or O-rings.
The pin is equipped with a central lubrication channel and cross-drilled holes that allow grease to be distributed evenly along the bearing surfaces, reducing friction and wear.
A threaded axial hole at one end accommodates a retaining bolt, securing the pin in place and preventing axial movement during operation.
The pin’s design also includes a hardened wear-resistant surface layer, achieved through induction hardening, which provides exceptional resistance to galling and abrasion.
The 332106302 Pivot Pin undergoes a multi-stage heat treatment process that includes quenching and tempering to achieve a core hardness of 52–56 HRC.
This hardness level provides an optimal balance between wear resistance and toughness, preventing brittle fracture under shock loads.
The pin’s surface is further enhanced with a zinc-nickel plating followed by a phosphating treatment, which provides excellent corrosion protection and improves lubricant retention.
This dual coating system ensures that the pin remains free from rust and pitting, even when exposed to moisture, mud, and aggressive hydraulic fluids.
The 332106302 Pivot Pin is forged from high-grade 42CrMo4 alloy steel, a material renowned for its excellent hardenability, high tensile strength, and good fatigue resistance.
The forging process aligns the grain structure, enhancing the pin’s mechanical properties and ensuring consistent performance under heavy loading.
Each pin is produced in ISO 9001 certified facilities, with strict process controls at every stage of manufacturing – from raw material inspection to final quality verification.
The pin’s chemical composition is verified using spectrometer analysis, ensuring that it meets the exacting standards set by XCMG’s OEM specifications.
Non-destructive testing methods, including magnetic particle inspection and ultrasonic testing, are used to detect any internal defects or surface cracks.
The result is a pivot pin that delivers consistent, reliable performance, with a service life that matches or exceeds that of the original equipment.
The 332106302 Pivot Pin plays an indispensable role in the overall performance and safety of XCMG articulated dump trucks.
Without a properly functioning pivot pin, the articulation joint would develop excessive play, leading to erratic steering, poor traction, and accelerated wear of tyres, suspension, and driveline components.
A worn or damaged pivot pin can also cause misalignment of the frames, resulting in uneven load distribution and potential structural damage to the chassis.
By maintaining the correct pivot geometry, the 332106302 pin ensures that the truck’s articulation system operates smoothly, allowing the vehicle to traverse steep grades, side slopes, and rutted roads with confidence.
Regular inspection and timely replacement of the pivot pin are essential for preventing unplanned downtime and costly repairs, particularly in demanding mining and construction applications.
Using a genuine XCMG 332106302 pivot pin guarantees that the replacement part meets the original design specifications, preserving the integrity of the articulation joint.
The 332106302 Pivot Pin is specifically designed for use in XCMG articulated dump trucks, particularly the XDA series and other articulated haulers in the XCMG lineup.
It is a critical component of the articulation joint, which connects the front and rear frames and allows the vehicle to steer via hydraulic cylinders that act on the joint.
Beyond articulated dump trucks, this pivot pin can also be used in other XCMG equipment that employs similar articulation systems, including certain wheel loaders and crawler cranes.
The pin’s standard dimensions and robust construction make it a versatile replacement part for a wide range of heavy machinery, providing flexibility for maintenance and repair operations.
When replacing a worn or damaged pivot pin, using the genuine 332106302 part ensures correct fitment, material strength, and coating quality, safeguarding the equipment from premature failure.
It is always recommended to replace the pin in pairs or in conjunction with new bushings to restore the articulation joint to its original performance level.
Installing the 332106302 Pivot Pin requires careful preparation and adherence to recommended procedures to ensure optimal performance and longevity.
Before installation, thoroughly clean the pin bore and bushings, removing any debris, old grease, or corrosion that could affect the fit or alignment.
Inspect the pin for any signs of damage or wear, and verify that its diameter and surface finish meet the specifications using calibrated measuring instruments.
Apply a generous amount of high-quality lithium-based grease to the pin’s bearing surfaces and lubrication channels before inserting it into the articulation joint.
Align the pin with the bores and carefully drive it into position using a soft-faced mallet or a hydraulic press, ensuring that it is fully seated and centred.
Secure the pin with the retaining bolt, torqued to the manufacturer’s recommended specification (typically 200–250 N·m), and install the locking mechanism to prevent loosening.
During routine maintenance, inspect the pivot pin for signs of wear, scoring, or corrosion, and verify that the articulation joint operates smoothly without excessive play.
Regular lubrication of the pivot pin at the intervals specified in the vehicle’s service manual is essential for minimising friction and extending the pin’s service life.
If any damage is detected, replace the pin immediately to avoid further damage to the bushings, seals, and surrounding structural components.
The 332106302 Pivot Pin is manufactured in accordance with the highest quality standards, with every production batch subjected to comprehensive testing and inspection.
The facility is certified to ISO 9001, and the manufacturing process follows XCMG’s stringent OEM specifications, ensuring that each pin meets the required performance criteria.
Dimensional accuracy is verified using coordinate measuring machines (CMM), with critical diameters, lengths, and hole positions checked against the engineering drawings.
Hardness testing is performed on every pin using Rockwell testers, with results recorded and traceable to the specific heat treatment batch.
Surface coating thickness and adhesion are evaluated using non-destructive gauges and cross-hatch testing, confirming that the zinc-nickel plating and phosphating meet the required standards.
Salt spray testing is conducted on sample pins to verify corrosion resistance, with the coating system demonstrating the ability to withstand over 500 hours of exposure without red rust.
These rigorous quality assurance measures guarantee that every 332106302 pivot pin delivers the reliability and durability expected from a genuine XCMG component.
The 332106302 Pivot Pin is an essential component for maintaining the articulation integrity and operational reliability of XCMG articulated dump trucks.
As a non-engine structural part, it provides the precise pivot point required for smooth, controlled chassis oscillation, enabling the vehicle to perform effectively in the most demanding terrain.
Its robust alloy steel construction, advanced heat treatment, and corrosion-resistant coating ensure exceptional durability and long service life, even under extreme loads and harsh environmental conditions.
With its precise OEM fitment and uncompromising quality, this pivot pin offers outstanding value and peace of mind for fleet operators and maintenance professionals alike.
Choosing the genuine XCMG 332106302 pivot pin safeguards your equipment from premature wear, reduces maintenance costs, and ensures that your articulated dump truck remains safe, productive, and reliable.
Always source genuine XCMG parts from authorised distributors to guarantee authenticity, compliance with OEM specifications, and long-term performance.
Whether for scheduled maintenance or emergency repairs, the 332106302 pivot pin is the trusted choice of professionals who demand the highest standards of quality and reliability in their heavy equipment.
