XCMG Horizontal Directional Drill Rig Anchor

The anchor assembly on XCMG Horizontal Directional Drill Rigs ensures secure machine positioning during critical trenchless operations. Engineered for stability and longevity, its components work synergistically under extreme loads.

Product Description of XCMG Horizontal Directional Drill Rig Anchor

**Elevator Frame:**
This structural backbone provides vertical support and alignment, enabling smooth lifting/lowering of the drill string. Its robust design ensures precise rod handling during pipe bursting or utility installation.
**Handle:**
Strategically positioned for operator ergonomics, the handle facilitates manual adjustments and secure access to the anchor mechanism. It offers intuitive control during rig setup and positioning.
**Circumvolve Frame (Rotation Frame):**
This pivotal component enables controlled 360-degree rotation of the anchor assembly. It ensures optimal positioning flexibility on uneven terrain, maximizing rig adaptability for complex bore paths.
**Oil-less Bearing:**
Integrated within the rotation mechanism, this maintenance-free, self-lubricating bearing minimizes friction during continuous swiveling. It eliminates grease contamination risks and reduces downtime in harsh job site conditions.
**Baffle:**
Acting as a deflection shield, the baffle protects critical internal components (like bearings and seals) from direct impact by debris, rocks, or slurry during drilling operations, enhancing component lifespan.
**Isolating Plank:**
This vibration-dampening layer sits between structural elements. It absorbs operational shocks and reduces metal-on-metal contact noise, providing critical protection against stress fractures and wear.
**Circle Plate (Rotary Base Plate):**
The precision-machined foundation plate provides a flat, stable mounting surface for the rotating assembly. It ensures even load distribution and true rotation alignment under high torque.
**Anchor (Primary Fixing Point):**
The core ground-engagement component. Engineered for exceptional tensile strength, it securely pins the rig to the earth, countering immense thrust and pullback forces generated during HDD drilling.
**Dustproof Cover:**
This sealed enclosure shields sensitive rotating joints and the oil-less bearing from airborne dust, abrasive soil particles, and moisture ingress, preventing premature wear and contamination.
**Felt Oil Seal (Felt Wiper Seal):**
Positioned at key entry points, this dense felt seal acts as a primary barrier. It efficiently scrapes mud and grime from rotating shafts while retaining internal lubrication, complementing the dustproof cover.

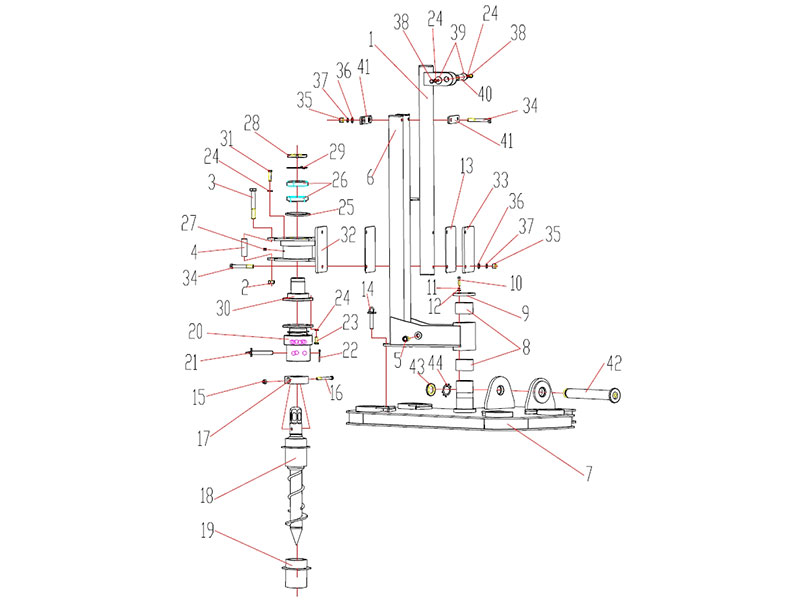

Product Parameters of XCMG Horizontal Directional Drill Rig Anchor

No.	Material No.	Parts Name	Q’ty
1	425102537	Anchor	1
2	805203445	Bolt	1
3	805300095	Washer	1
4	425101110	Shaft	1
5	425400217	Anchor	4

No.	Material No.	Parts Name	Q’ty
1	425100341	Elevator Frame	1
2	805200230	Nut	1
3	805000605	Bolt	1
4	425500243	Handle	1
5	805103886	Bolt	2
6	425101444	Circumvolve Frame	1
7	425101448	Tray	1
8	800553501	Oil-less Bearing	2
9	425500214	Baffle	1
10	805100118	Bolt	4
11	805300010	SpringWasher	4
12	805300069	Washer	4
13	425100346	Isolating Plank	2
14	425500215	Pin	1
15	805200297	Nut	4
16	805000403	Bolt	4
17	425501338	Circle Plate	4
18	425501339	Anchor	4
19	425501337	Dustproof Cover	4
20	425500255	Drive Cover	1
21	425102299	Shaft	1
22	805639446	Safe Pin	1
23	805000716	Bolt	8
24	805300018	SpringWasher	10
25	803377728	Felt Oil Seal	1
26	800513740	Bearing	2
27	801100337	Zerk	2
28	805200144	Nut	1
29	805300080	Washer	1
30	425500252	Flange Tray	1

No.		Material No.	Parts Name	Q’ty
31	805000023		Bolt	4
32	425100348		Support Frame	1
33	425100349		Support Plank	1
34	805000700		Bolt	4
35	805203163		Nut	4
36	805300013		Washer	4
37	805300011		SpringWasher	4
38	805000048		Bolt	2
39	425100350		Board	2
40	425100351		Shaft	1
41	425100352		Boart	2
42	425101110		Shaft	1
43	805203445		Bolt	1
44	805300095		Washer	1
