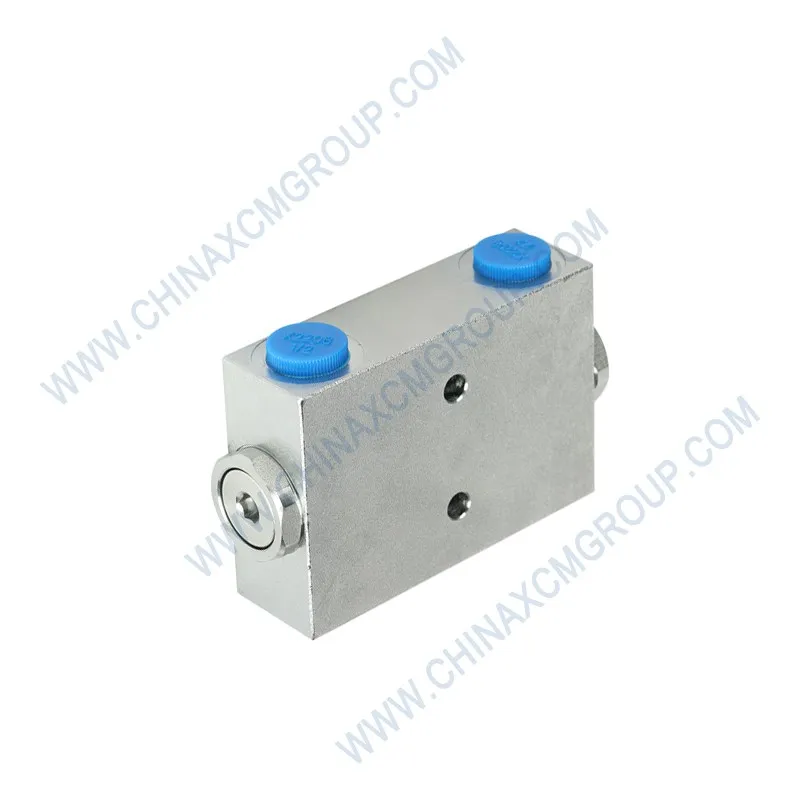

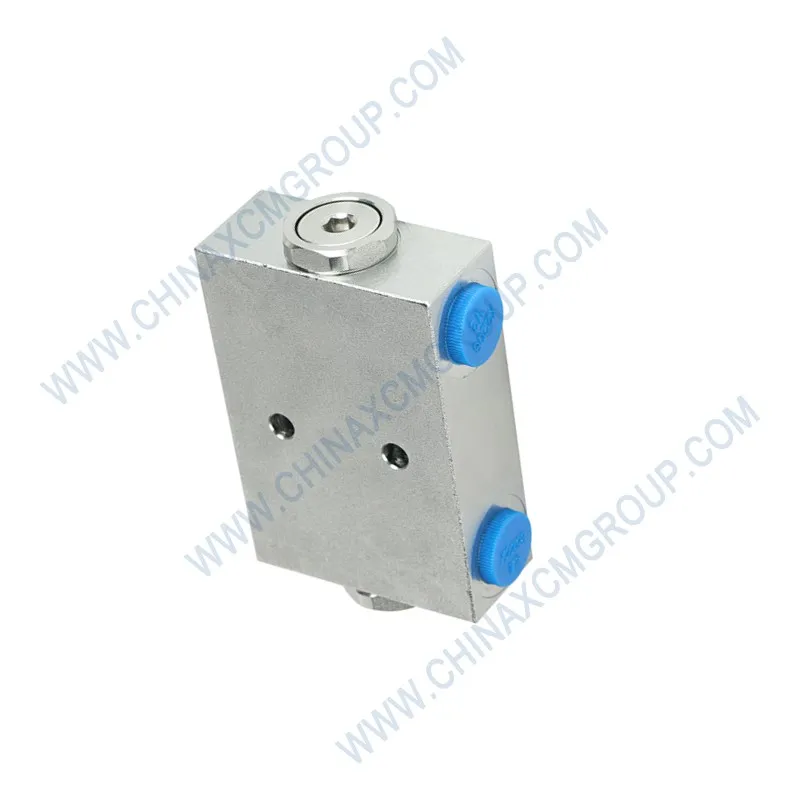

The 803011215 Hydraulic Lock is a genuine OEM pressure‑holding valve manufactured by XCMG for motor graders and heavy construction equipment. This precision‑engineered hydraulic lock, also known as a pilot‑operated check valve or load‑holding valve, provides a leak‑tight seal that prevents unintended movement of hydraulic cylinders on XCMG GR series motor graders. Constructed from high‑strength ductile iron with hardened steel poppets and advanced polymer seals, the 803011215 hydraulic lock is designed to withstand extreme system pressures (up to 35 MPa), temperature fluctuations, and contamination in demanding grading environments.
The hydraulic lock 803011215 is a direct replacement for worn, leaking, or blown‑out load‑holding valves on XCMG GR135, GR165, GR180, GR215, GR260, GR300, and GR350 motor graders. Typical applications include blade lift cylinder holding circuits, circle rotation brake valves, articulation cylinder lock valves, and wheel lean cylinder pilot checks. The valve features a pilot‑to‑open design with an internal damping orifice that prevents pressure spikes and ensures smooth, stable cylinder motion.
A failed or leaking hydraulic lock allows the cylinder to drift, causing blade drop, circle rotation back‑drive, or unintended machine articulation – all serious safety hazards. Replacing a faulty lock with the genuine XCMG 803011215 restores positive holding, eliminates cylinder drift, and ensures safe, predictable machine operation.
| Parameter | Specification |
|---|---|
| OEM Number | 803011215 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Hydraulic Lock – Pilot‑Operated Check Valve / Load‑Holding Valve |
| Valve Type | Pilot to open, spring‑closed poppet (cartridge style) |
| Maximum Operating Pressure | 35 MPa (5,075 psi) |
| Nominal Flow Rating | 50 L/min (13.2 US gpm) |
| Pilot Ratio | 3:1 (standard) or 4:1 (optional) |
| Crack Pressure (check function) | 0.15 – 0.25 MPa (22 – 36 psi) |
| Internal Leakage (closed) | ≤ 0.5 mL/min at 35 MPa |
| Port Thread | G1/2″ BSPP or 3/4″‑16 UNF (application‑specific) |
| Body Material | Ductile iron (GGG‑50 / 65‑45‑12 equivalent) |
| Poppet & Seat Material | Hardened steel (58‑62 HRC) with diamond‑lap finish |
| Seals | FKM (Viton) – compatible with mineral oil, synthetic hydraulic fluids |
| Operating Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Standards | ISO 9001:2024, ISO 1219, SAE J1117 |
| Compatible Models | XCMG GR135, GR165, GR180, GR2003, GR215, GR260, GR300, GR350 |
| Applications | Blade lift cylinder holding, circle rotation brake, articulation lock, wheel lean pilot check |
The XCMG 803011215 Hydraulic Lock is an essential safety component that prevents unintended movement of hydraulic cylinders when the control valve is in neutral. In the blade lift circuit, this valve holds the blade at the set height, preventing it from dropping even if a hose bursts or the control valve leaks. Without a properly functioning hydraulic lock, the blade could fall, causing serious injury or damage to the machine and surrounding equipment.
On the circle drive, the hydraulic lock 803011215 holds the moldboard rotation position while grading side slopes. A leaking lock allows the circle to back‑drive under load, making it impossible to maintain a consistent blade angle. The pilot‑to‑open design ensures that the lock only opens when the operator commands movement, and closes instantly when the control is released, providing positive holding.
Articulation cylinders also rely on hydraulic locks to keep the front and rear frames aligned. If the lock fails, the grader may unexpectedly articulate when parked or during transport, creating a rollover hazard. The 803011215 lock is engineered for zero internal leakage, meeting the most stringent safety standards for mobile hydraulic equipment.
Each 803011215 hydraulic lock is machined from high‑grade ductile iron castings on a CNC turning center. The poppet and seat are ground and then lapped to a mirror finish, ensuring metal‑to‑metal sealing with virtually zero leakage. The pilot piston is precision‑fitted to its bore, and the spring is calibrated on a computer‑controlled tester for consistent crack pressure.
After assembly, every valve is 100% pressure‑tested on a dedicated hydraulic test bench. Tests include: check function (pressure drop across the valve at rated flow), pilot‑open verification, internal leakage measurement at 35 MPa (≤ 0.5 mL/min), and burst pressure validation (1.5× rated pressure). Random samples undergo 1 million cycle fatigue testing.
XCMG’s quality system ensures that every hydraulic lock meets or exceeds ISO 1219 and SAE J1117 standards. A laser‑etched batch code and serial number on the valve body provide full traceability. The valve is packed in a sealed anti‑rust bag with protective plastic port caps.
Replacing a faulty hydraulic lock 803011215 requires relieving system pressure and disconnecting the hydraulic lines. Clean the area around the valve thoroughly before removal to prevent contamination. Unscrew the valve (cartridge style) from the manifold or cylinder port using a suitable socket. Inspect the port for damage or debris.
Lubricate the new valve’s O‑rings with clean hydraulic oil and thread it into the port by hand until seated. Torque to the specification (typically 50‑60 Nm for G1/2″ valves). Reconnect hoses and tighten fittings to the recommended torque. Start the engine and cycle the cylinder several times to purge air. Then, stop the engine and verify that the cylinder holds position with no drift for at least 10 minutes.
If the cylinder still drifts, check for internal leakage in the cylinder piston seal or damage to the pilot line. Do not attempt to disassemble the hydraulic lock – it is a sealed, non‑serviceable component. Always replace a suspect lock with a new 803011215.
Aftermarket hydraulic locks are often made from lower‑grade cast iron that cracks under pressure, or they use poor‑quality seals that leak after a few heat cycles. The genuine XCMG lock uses ductile iron (not brittle grey iron) and Viton seals rated for high temperatures. Aftermarket valves may also have incorrect pilot ratios, causing chattering or sluggish response.
Counterfeit locks may not be pressure‑tested and often fail catastrophically, causing cylinder free‑fall. The 803011215 is 100% factory‑tested for leakage and crack pressure. Genuine XCMG valves also have the XCMG logo and part number etched on the body. Using a fake hydraulic lock can lead to serious accidents and void the machine warranty.
XCMG provides a 12‑month warranty against manufacturing defects. Choose genuine for safety, reliability, and peace of mind.
Common signs that the hydraulic lock 803011215 needs replacement: cylinder drift (blade drops more than 10 mm per minute), circle rotation when the lever is in neutral, articulation joint movement after parking, and oil weepage from the valve body. Also, if the cylinder creeps under load but holds when static, internal seal degradation is indicated.
Preventive replacement is recommended every 5,000 operating hours or whenever the hydraulic system is overhauled. The cost of a new lock is low compared to the cost of an accident caused by a falling blade or unexpected machine articulation. During routine maintenance, check cylinder drift by applying rated load and measuring drop over 10 minutes.
Keep a spare 803011215 hydraulic lock in your parts inventory. A failed lock can stop work immediately. Replace any lock that shows signs of external leakage or fails the drift test.
The 803011215 Hydraulic Lock is stocked in XCMG regional warehouses in North America (Houston), Europe (Rotterdam), Middle East (Dubai), and Asia (Shanghai). Standard air freight delivers within 3‑7 business days worldwide. Expedited shipping (1‑2 days) is available for urgent repairs. Bulk orders (10+ locks) receive volume discounts and can be shipped via sea freight.
Each valve is supplied in a sealed bag with protective port caps and a desiccant pack. For large fleets, consignment stock programs are available to ensure immediate availability and reduced downtime. Don’t let a leaking hydraulic lock compromise your grader’s safety or productivity.
Order the genuine XCMG 803011215 Hydraulic Lock today and ensure your motor grader’s cylinders hold position reliably. This lock is a critical safety component for blade lift, circle rotation, and articulation circuits. Keep a spare in your service truck for every hydraulic cylinder service, and always replace with genuine XCMG parts.
Upgrade your motor grader’s hydraulic integrity with the XCMG genuine hydraulic lock. Engineered for zero leakage, high pressure, and long life – order now and experience the quality that keeps your grader safe and productive.
