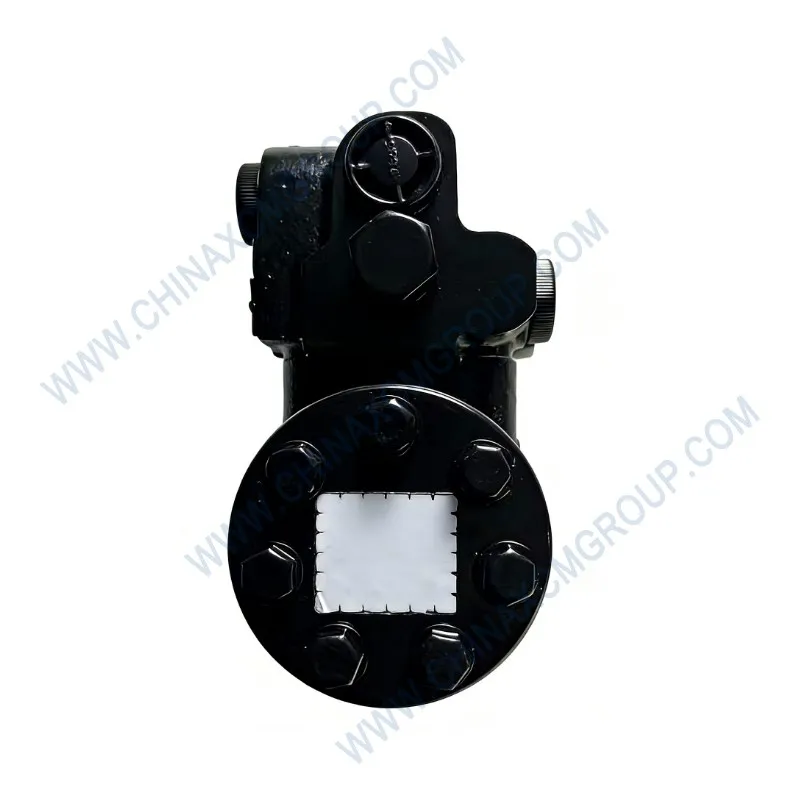

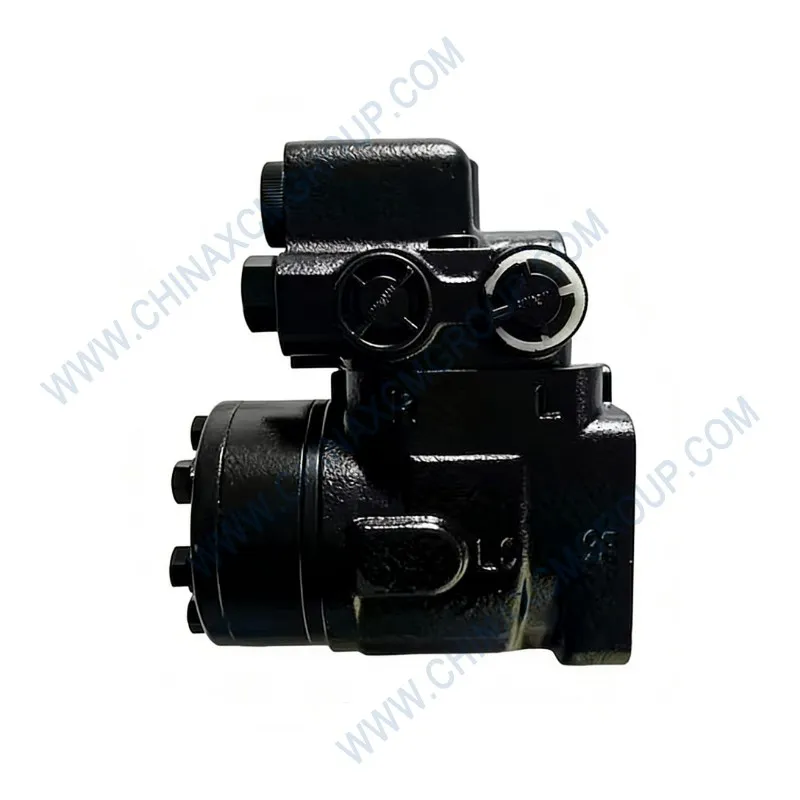

The genuine OEM 803011053 Steering Gear is a precision-engineered steering box designed specifically for XCMG motor graders. This critical component translates steering wheel input into precise articulation of the front wheels, ensuring safe and responsive control in GR series graders.
Manufactured to original equipment specifications, the 803011053 steering gear features a recirculating ball mechanism with hardened steel worm and sector shafts. It provides smooth, low-friction operation with a steering ratio optimized for grader maneuverability. The housing is high-strength cast iron, sealed against contamination and oil leakage.
Using genuine XCMG 803011053 steering gears eliminates play, uneven tire wear, and loss of directional control. Each unit undergoes 100% functional testing and leak inspection before leaving the factory. Upgrade your grader’s steering precision with authentic OEM quality.
The 803011053 steering gear uses a recirculating ball design with hardened steel balls between the worm and nut. This reduces internal friction by up to 40% compared to conventional gear systems, providing effortless steering even under full load.
Integral hydraulic power assist is built into the housing, utilizing grader’s existing steering pump. The spool valve responds instantly to steering wheel input, delivering proportional assist force up to 12 MPa. This ensures precise control at high speeds and reduced effort during low-speed maneuvering.
The output sector shaft is forged from chromium-molybdenum steel, induction-hardened to 55-60 HRC for wear resistance. Double lip seals prevent dust ingress and fluid leakage, even after thousands of steering cycles. All critical bearings are pre-loaded for zero play over the gear’s service life.
This steering gear directly replaces OEM part 803011053 on XCMG GR2153, GR200, GR180, GR3005, and GR3505 graders. It is the original equipment steering box for all GR series machines with hydraulic power steering.
For older GR135 and GR165 series, the 803011053 steering gear offers drop-in compatibility with existing mounting bolt patterns and steering column couplings. Cross-reference with aftermarket numbers: SG-2410, XCMG-STG210.
The gear is designed for use with standard grader steering linkage. The pitman arm output taper matches XCMG drag link ends. Ensure correct fluid (XCMG PSF or Dexron III) and proper bleeding after installation.
Before installing the 803011053 steering gear, center the steering wheel and front wheels. Mount the gear to the frame using new bolts (grade 10.9) torqued to 120-130 Nm. Connect hydraulic lines – ensure no debris enters the ports. Fill the system with approved fluid.
After installation, bleed the system by turning the steering wheel lock-to-lock 10 times with the engine idling. Check for leaks at all connections. Adjust the sector shaft preload if necessary (special tool required). Road test for proper centering and return-to-center feel.
All 803011053 steering gears are manufactured in XCMG’s ISO 9001:2015 and IATF 16949 certified facilities. Each unit undergoes 100% functional testing on a dedicated steering test bench, measuring input torque, output angle, and internal leakage.
Random samples are durability-tested for 1 million steering cycles under full load. The housing is pressure-tested at 24 MPa (2x working pressure). Batch traceability includes serial number and test report archive for 10 years.
Aftermarket steering gears often use soft metals, incorrect preload, or poor sealing, leading to premature wear, heavy steering, and oil leaks. Genuine 803011053 gears use OEM-spec materials and precision assembly validated by field trials.
Fleet operators report that genuine XCMG steering gears maintain factory steering feel for over 10,000 hours, while aftermarket units often develop play within 2,000 hours. Protect your grader’s directional stability and operator safety. Choose authenticity, choose 803011053.
The 803011053 steering gear is stocked in XCMG regional warehouses across North America, Europe, Asia-Pacific, the Middle East, and Africa. Standard lead time is 5-7 working days. Express freight available for urgent breakdowns. Bulk orders receive volume discounts.
Each unit is packed in heavy-duty foam-lined cartons with anti-rust coating. Technical datasheets, installation drawings, and torque specifications are provided. XCMG parts specialists offer remote diagnostic support for steering system issues.
A large mining contractor in Australia replaced worn aftermarket steering boxes on 18 XCMG GR215 graders with genuine 803011053 units. After 8,000 operating hours, zero steering play or leakage was recorded, improving operator comfort and reducing tire wear by 30%.
In Canadian winter operations at -40°C, the 803011053 steering gear maintained consistent assist force and seal integrity, while aftermarket units froze or leaked. Operators reported significantly reduced steering effort during snow clearing operations.
The 803011053 is available as a brand-new complete assembly, including the steering gear housing, pitman arm, and mounting bolts. XCMG also offers factory-remanufactured units at reduced cost, with same warranty as new.
For fleet managers, XCMG provides exchange programs: return your old core and receive a discount on a genuine replacement. Core must be complete and not damaged beyond rebuildable condition. Contact our parts team for exchange pricing.
To maximize service life of your 803011053 steering gear, change the power steering fluid every 2,000 hours or annually. Inspect hoses and fittings for leaks. Check steering linkage for wear – worn joints can overload the steering gear output shaft.
If you notice excessive steering play (more than 20mm at the steering wheel rim), have the gear inspected. Adjust sector shaft preload only as a temporary measure – internal wear requires replacement. Genuine XCMG gears typically provide 10,000-15,000 hours of reliable service.
In summary, OEM number 803011053 represents the benchmark for XCMG motor grader steering systems. From metallurgy to final assembly, every detail meets the highest safety and durability standards. Never risk steering failure or erratic control. Order the genuine 803011053 steering gear for your fleet today and experience the XCMG quality difference.
With proven reliability in thousands of graders worldwide, the 803011053 steering gear continues to outperform aftermarket alternatives. Ensure precise directional control, operator confidence, and extended component life. Choose genuine XCMG for your grader’s steering system. Secure your fleet’s safety with OEM authenticity.
